Chevrolet Sonic Repair Manual: Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (1.4L)

Chevrolet Sonic Repair Manual / HVAC / Cooling / Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (1.4L)



Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

Callout

Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
  2. Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement.

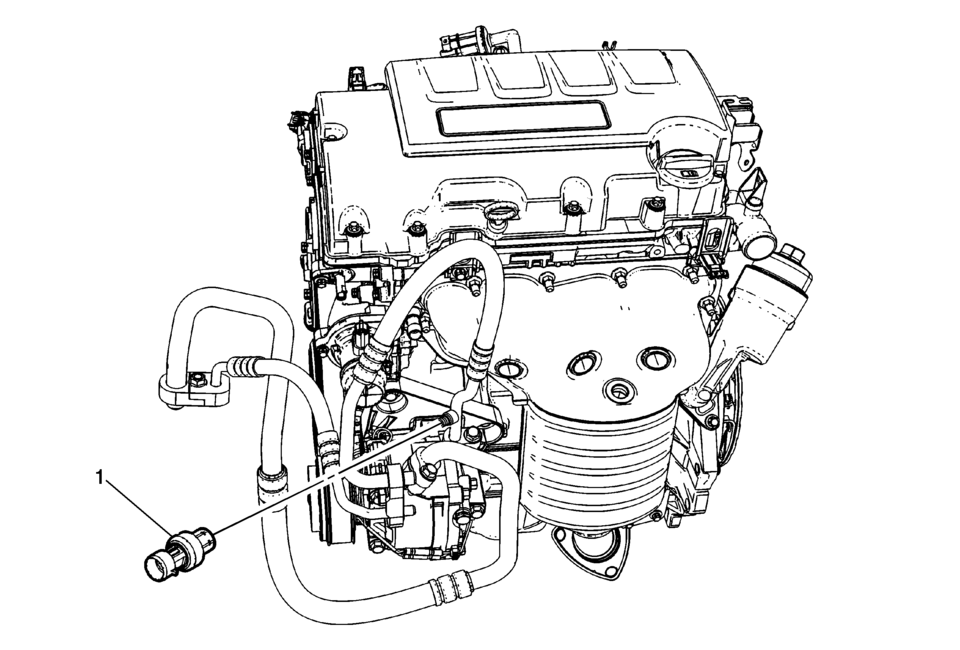

1

Air Conditioning Refrigerant Pressure Sensor

Caution:

Refer to Fastener Caution.

Procedures

  1. Disconnect the air conditioning refrigerant pressure sensor connector.
  2. Remove and discard the O-ring and replace with NEW. Refer to Air Conditioning O-Ring Seal Replacement.
Tighten


6 Y (54 lb in)
