Chevrolet Sonic Repair Manual: Air Conditioning Compressor and Condenser Hose Replacement (LDE/LWE)

Chevrolet Sonic Repair Manual / HVAC / Cooling / Air Conditioning Compressor and Condenser Hose Replacement (LDE/LWE)

Removal Procedure
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.
  2. Disconnect the A/C refrigerant pressure sensor electrical connector.

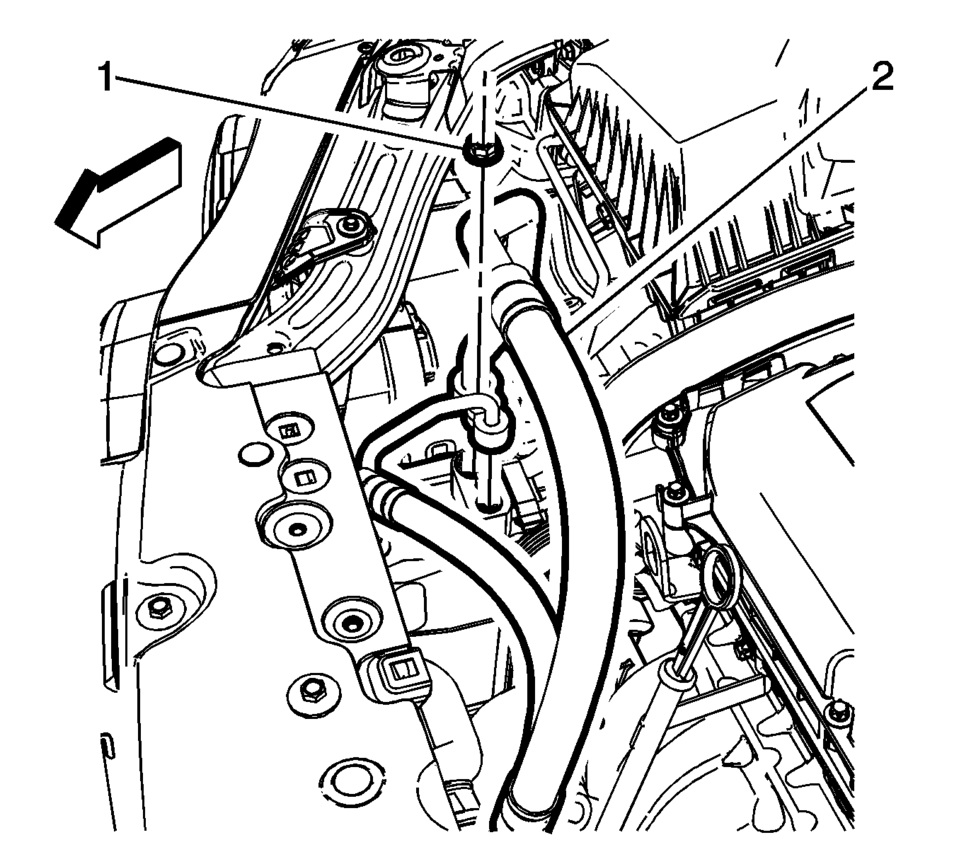

  3. Remove air conditioning compressor and condenser hose nut (1).
  4. Remove air conditioning compressor and condenser hose (2) from A/C condenser.

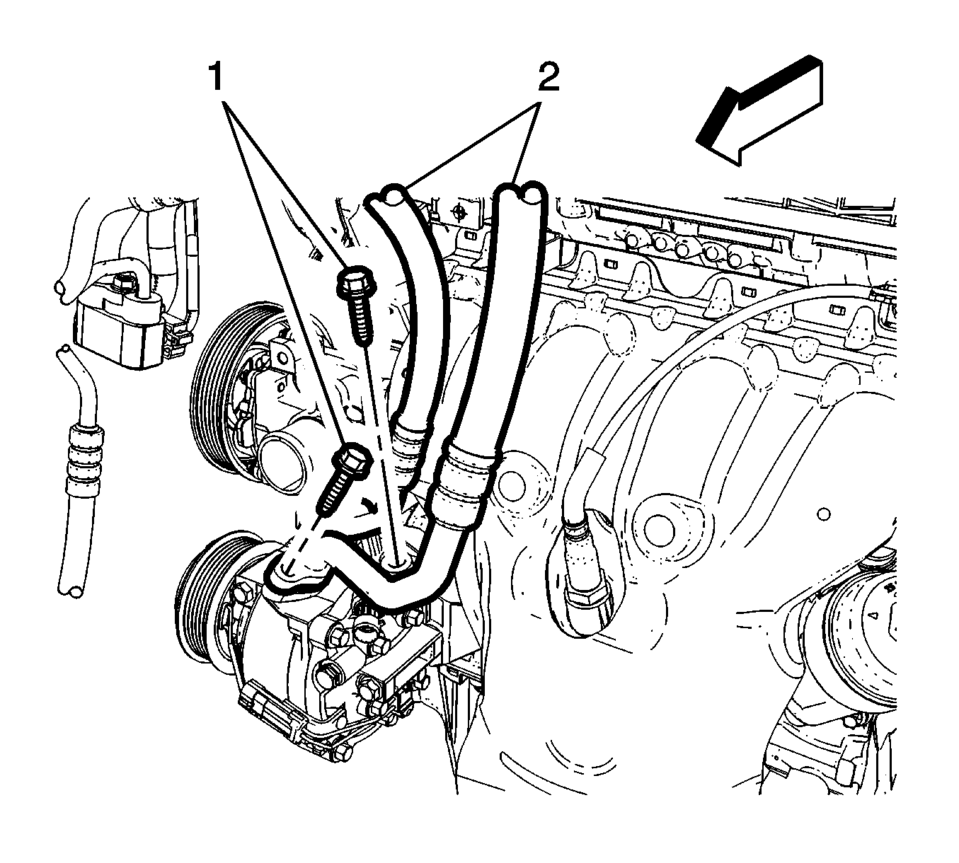

  5. Remove A/C compressor and condenser hose bolts (1).
  6. Remove A/C compressor and condenser hose (2) from A/C compressor.

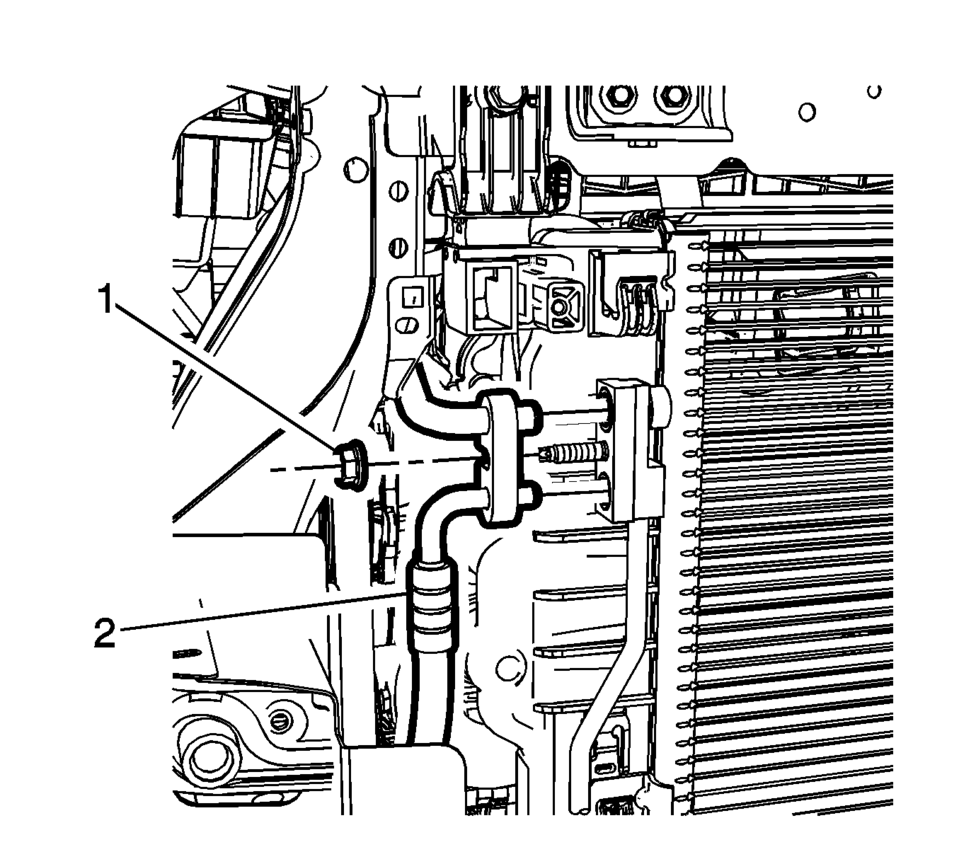

  7. Remove air conditioning compressor and condenser hose nut (1).
  8. Remove air conditioning compressor and condenser hose (2) from refrigerant hose.
  9. Remove air conditioning compressor and condenser hose from the vehicle.
Installation Procedure

    Note:

    Use NEW system seals. Refer to Air Conditioning System Seal Replacement.

  1. Install air conditioning compressor and condenser hose.

  2. Caution:

    Refer to Fastener Caution.

  3. Install air conditioning compressor and condenser hose (2) to the refrigerant hose.
  4. Install air conditioning compressor and condenser hose nut (1). Tighten nut to 22 Y (16 lb ft)

    .



  5. Install air conditioning compressor and condenser hose (2) to the A/C compressor.
  6. Install air conditioning compressor and condenser hose bolts (1). Tighten bolt to 22 Y (16 lb ft)

    .



  7. Install air conditioning compressor and condenser hose (2) to the A/C condenser.
  8. Install air conditioning compressor and condenser hose nut (1). Tighten nut to 22 Y (16 lb ft)

    .

  9. Connect the A/C refrigerant pressure sensor electrical connector.
  10. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging.
