Air Conditioning Evaporator Core Replacement

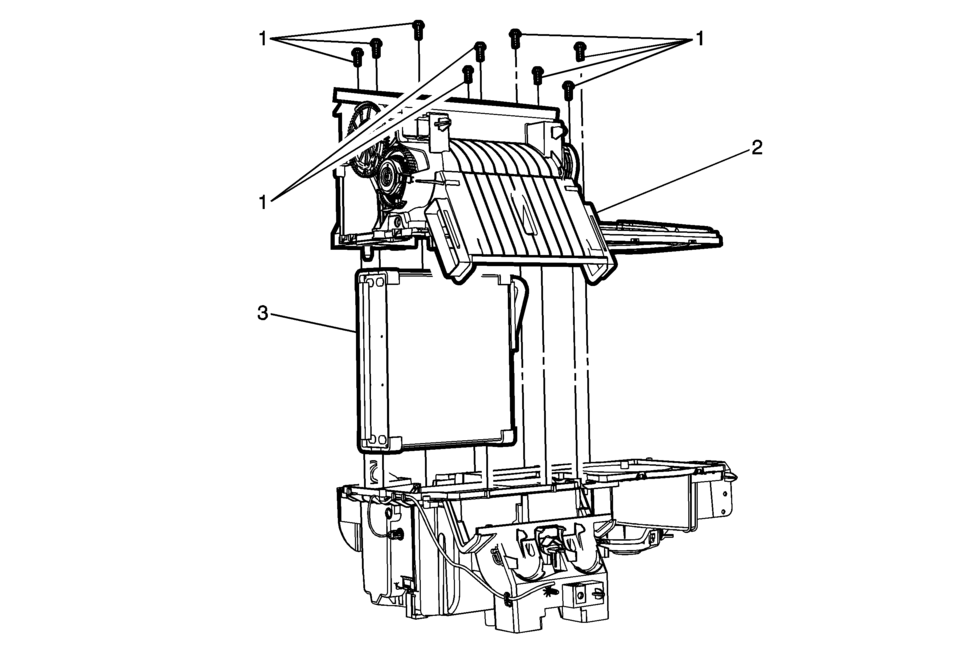

Callout

Component Name

Preliminary Procedure

  1. Remove the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement.
  2. Remove HVAC module. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation.
  3. Remove air inlet assembly Refer to Air Inlet Assembly Replacement

1

Upper Heater and Air Conditioning Evaporator Case Fasteners (Qty: 9)

Caution:

Refer to Fastener Caution.

2

Upper Heater and Air Conditioning Evaporator Case Assembly

3

Evaporator Core Assembly
