Callout |
Component Name |
---|---|
Preliminary Procedures
|
|
1 |

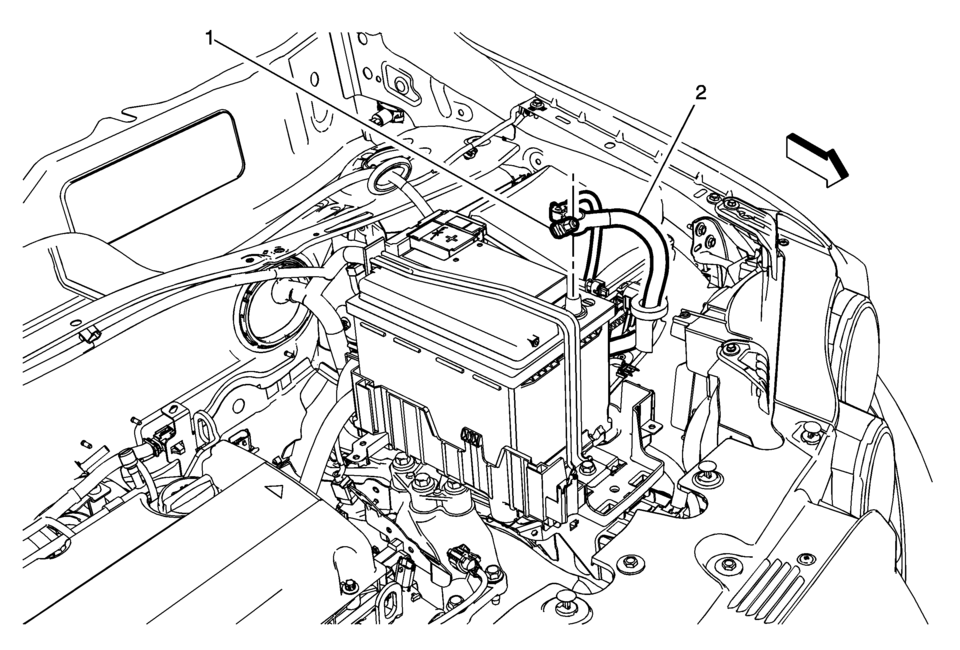

Battery Negative Cable Fastener Warning: Refer to Battery Disconnect Warning. Caution: Refer to Fastener Caution.
4.5 Y (40 lb in) |
2 |
Battery Negative Cable Procedure
|
Battery Tray Replacement
Battery Tray Replacement
Callout
Component Name
Preliminary Procedures
Remove the battery. Refer to Battery Replacement.
Unclip the engine control module (ECM) bracket from the battery
tray and set aside.
Unclip the ...
Intake Manifold Assemble
Install the evaporative emission canister purge solenoid valve (3).
Install the 2 manifold absolute pressure sensors (2).
Install the 2 manifold absolute pressure sensor bolts (1) and tighten.
Install the fuel injection fuel rail assembly ...
Engine Oil Cooler Housing Installation
Clean the engine oil cooler housing to thermostat housing sealing surfaces.
Install 2 NEW gaskets.
h.\.\,.\\..,v:..//
Install the engine oil cooler inlet pipe (3).
Install the engine oil cooler housing (1) and the 5 engine oil cooler bolts (2)
and t ...
