Blower Motor Resistor Replacement

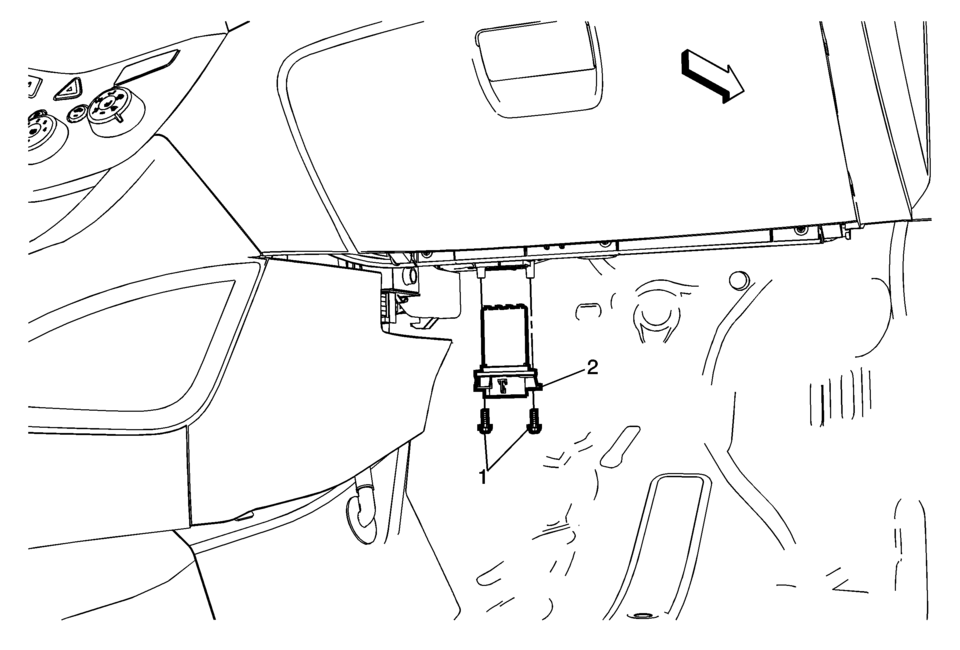

Callout

Component Name

Preliminary Procedure

Remove the instrument panel insulator, if equipped.

1

Blower Motor Resistor Screw (Qty: 2)

Caution:

Refer to Fastener Caution.

2

Blower Motor Resistor

Procedure

Disconnect the wiring connector.
