Driver or Passenger Seat Back Cushion Heater Replacement

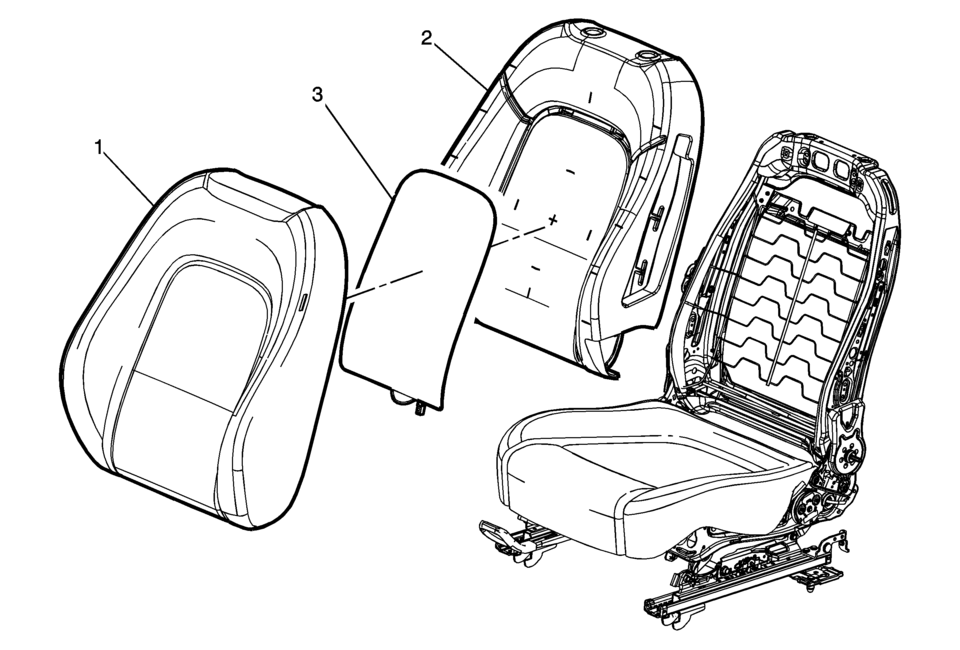

Callout

Component Name

Warning:

Refer to SIR Warning.

Preliminary Procedure

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation.
  2. Remove the driver or passenger seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cover and Pad Replacement.

1

Driver or Passenger Seat Back Cushion Cover

Procedure

Separate the seat cushion from the seat cushion pad.

2

Driver or Passenger Seat Back Cushion Pad

3

Driver or Passenger Seat Back Cushion Heater

Procedure

  1. Disconnect the electrical connector.
  2. Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.
