Chevrolet Sonic Owner's Manual: Engine Compartment Overview

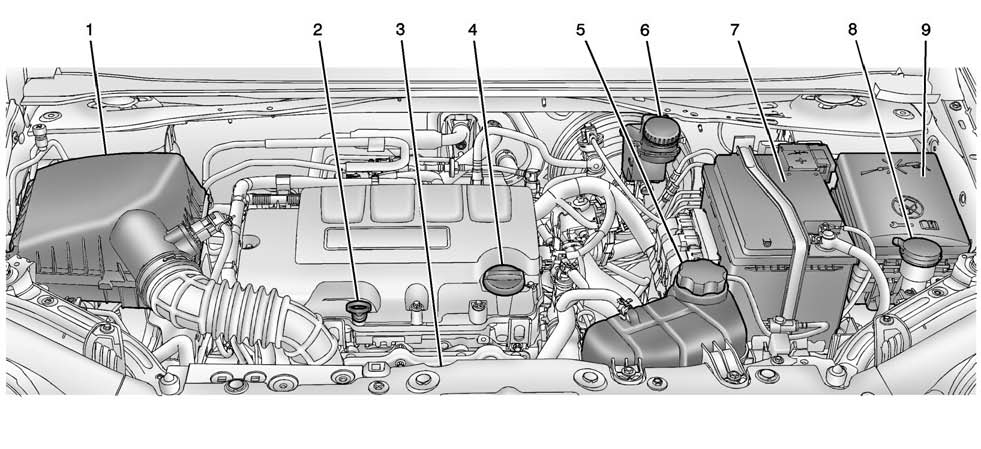

1.4L L4 Engine


1.4L L4 Engine

1. Engine Air Cleaner/Filter.

2. Engine Oil Dipstick. See Engine Oil.

3. Engine Cooling Fan (Out of View). See Cooling System.

4. Engine Oil Fill Cap. See Engine Oil.

5. Engine Coolant Surge Tank and Pressure Cap. See Cooling System.

6. Brake/Clutch Fluid Reservoir. See Brakes  and Hydraulic Clutch.

7. Battery.

8. Windshield Washer Fluid Reservoir. See Washer Fluid.

9. Engine Compartment Fuse Block.

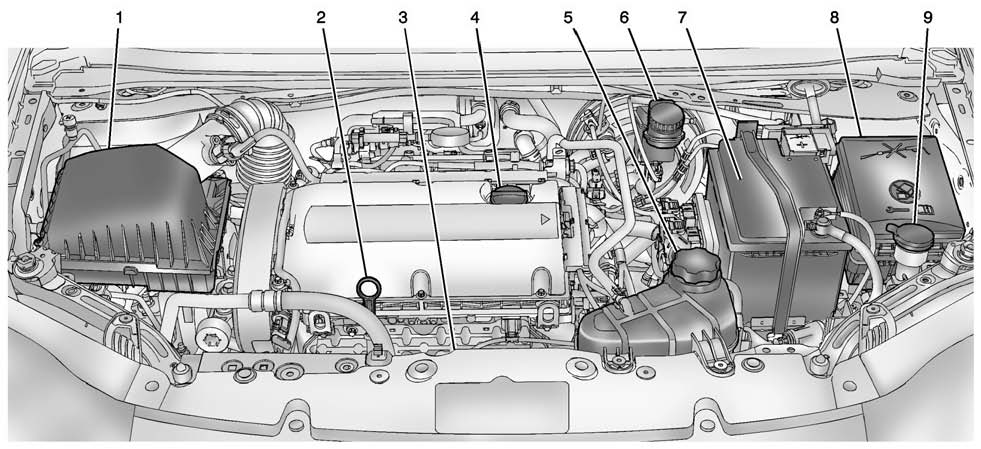

1.8L L4 Engine


1.8L L4 Engine

1. Engine Air Cleaner/Filter.

2. Engine Oil Dipstick. See Engine Oil.

3. Engine Cooling Fan (Out of View). See Cooling System.

4. Engine Oil Fill Cap. See Engine Oil.

5. Engine Coolant Surge Tank and Pressure Cap. See Cooling System.

6. Brake/Clutch Fluid Reservoir. See Brakes  and Hydraulic Clutch.

7. Battery.

8. Engine Compartment Fuse Block.

9. Windshield Washer Fluid Reservoir. See Washer Fluid.

Hood
To open the hood: 1. Pull the hood release handle inside the vehicle. It is located on the lower left side of the instrument panel. 2. Go to the front of the vehicle and move the secondary hoo ...

Engine Oil
To ensure proper engine performance and long life, careful attention must be paid to engine oil. Following these simple, but important steps will help protect your investment: Always use engin ...
