Chevrolet Sonic Repair Manual: Engine Oil Heater Replacement



Engine Oil Heater Replacement

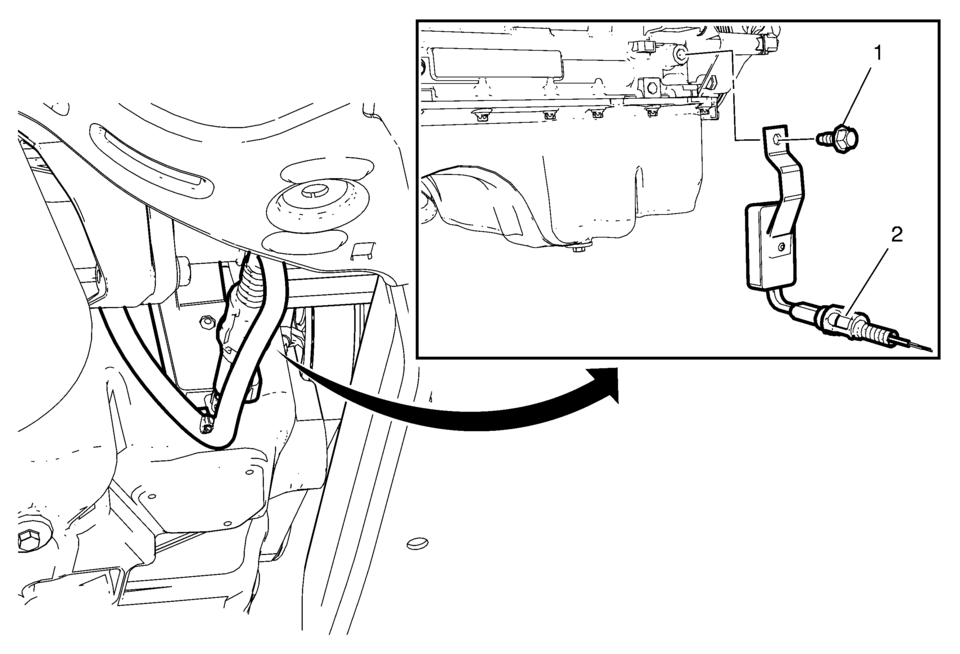

Callout

Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to  Lifting and Jacking the Vehicle
  2. If equipped, remove the front insulator cover. Refer to Front Compartment Front Insulator Cover Replacement.

1

Engine Oil Heater Bolt

Caution:

Refer to Fastener Caution.

Tighten


40 Y (30 lb ft)

2

Engine Oil Heater

Procedure

Disconnect the electrical connector.

Engine Oil Heater Removal
Remove the engine oil heater bolt (1). Remove the engine oil heater (2). ...
