Floor Rear Air Outlet Duct Replacement - Left Side

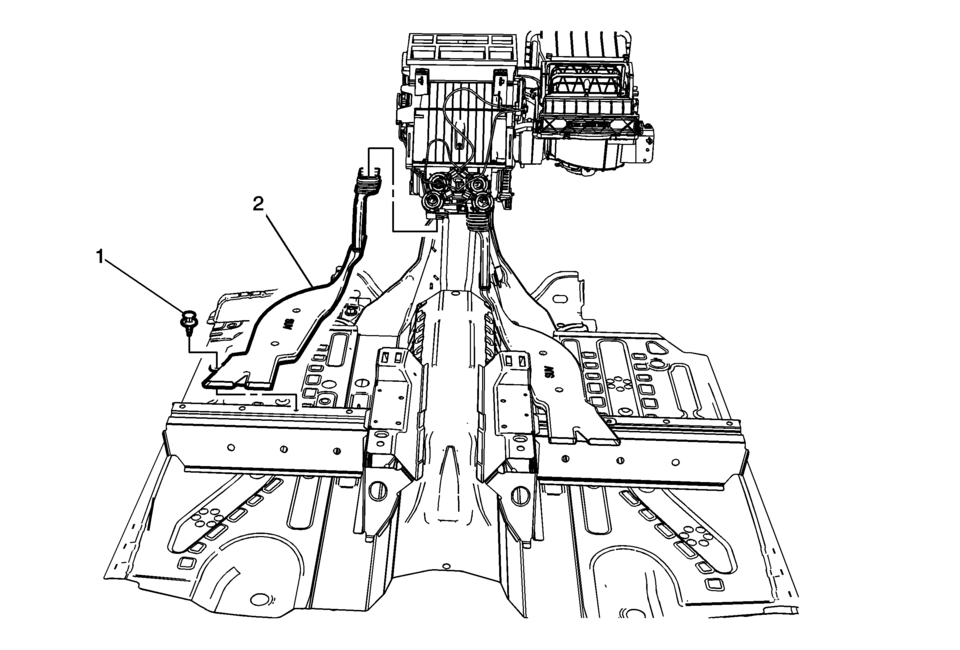

Callout

Component Name

Preliminary Procedure

Remove the floor panel carpet . Refer to Floor Panel Carpet Replacement.

1

Floor Rear Air Outlet Duct Push-In Fastener

2

Floor Rear Air Outlet Duct

Floor Air Outlet Duct Replacement - Right Side (LHD)
// Floor Air Outlet Duct Replacement - Right Side Callout Component Name Preliminary Procedure Remove the instrument panel insul ...

Floor Rear Air Outlet Duct Replacement - Right Side
Floor Rear Air Outlet Duct Replacement - Right Side Callout Component Name Preliminary Procedure Remove the front floor carpet. ...
