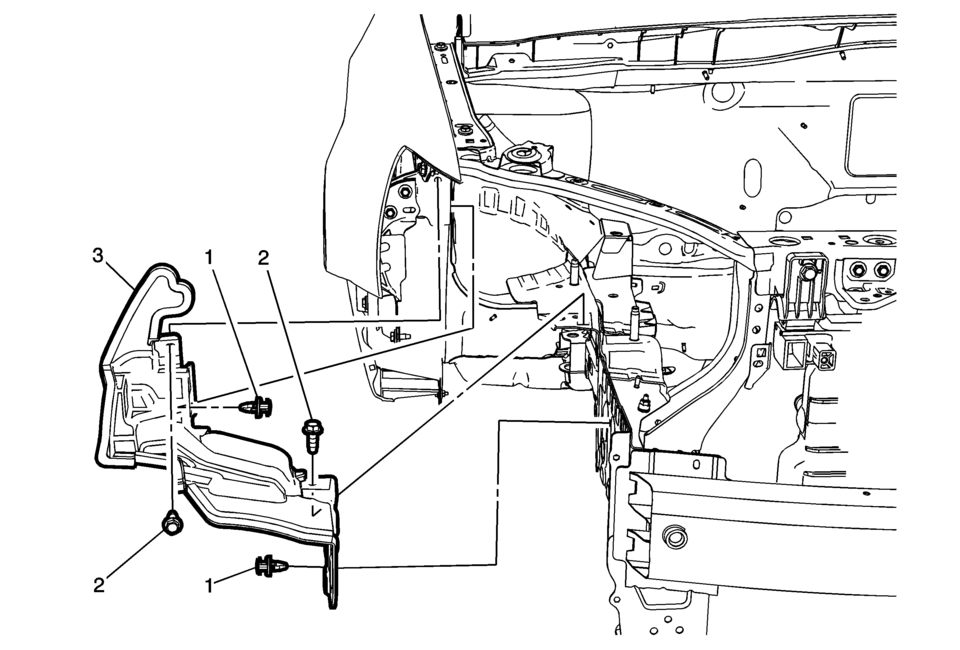

Callout |
Component Name |
---|---|
Preliminary Procedure
|
|
1 |
Front Air Deflector Retainers (Qty?€‰:2) |
2 |
Front Air Deflector Bolts (Qty?€‰:2) Caution: Refer to Fastener Caution.
8?€‰Y (71?€‰lb?€‰in) |
3 |
Front Air Deflector |
Rear Compartment Courtesy Lamp Replacement (Hatchback)
Rear Compartment Courtesy Lamp Replacement
Callout
Component Name
1
Rear Compartment Courtesy Lamp Assembly
Procedure
Use the appropriate trim tool in order to release the lamp assembly
from the rear quarter ...
Front Side Door Lock Cylinder Coding (Non Free Wheeling)
The door lock cylinder uses 8 of the 8?€‰cut positions. The tumbler positions
are staggered from side to side, 4 on one side and 4 on the other, are not self-retaining,
and are not snap in.
Note: All lock cylinders for side milled keys have right and left
tumblers. The locat ...
Automatic Transmission Flex Plate Removal
Special Tools
EN-652 Automatic Transmission Flex Plate Holder
For equivalent regional tools, refer to Special Tools.
Install the EN-652 holder (1) to hold the automatic
transmission flex plate (2).
Loosen the 6 automatic transmission flex plate bolts.
Re ...
