Front Floor Console Extension Replacement - Right Side

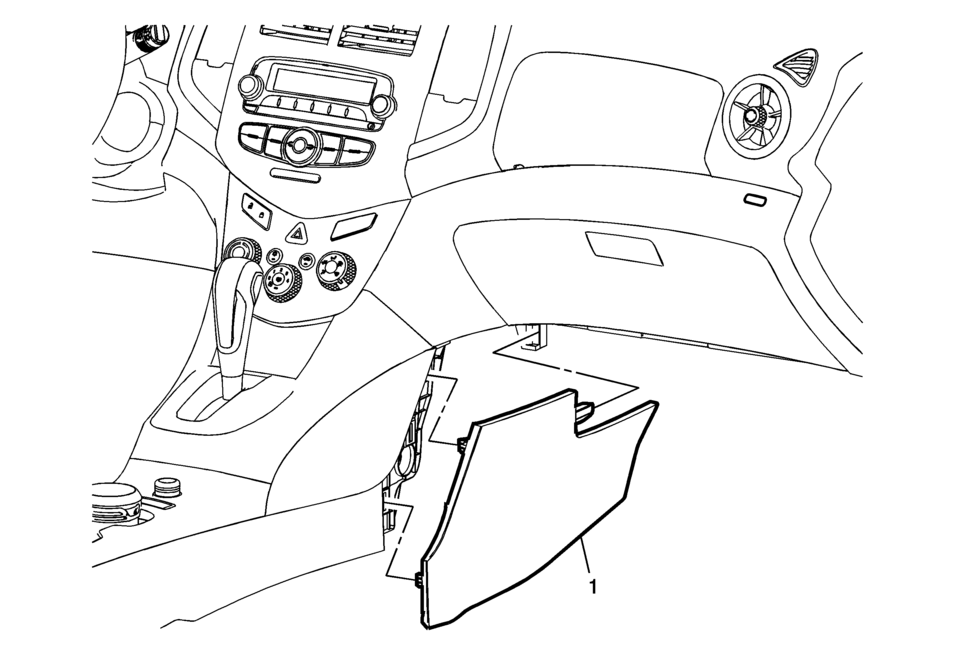

Callout

Component Name

1

Front Floor Console Extension

Procedure

Use a flat bladed plastic trim tool in order to release the retainers securing the extension to the console assembly.

Front Floor Console Extension Replacement - Left Side
Front Floor Console Extension Replacement - Left Side Callout Component Name 1 Front Floor Console Extension Push-In Ret ...

Front Floor Console Multifunction Switch Replacement
Front Floor Console Multifunction Switch Replacement Callout Component Name Preliminary Procedure Remove the front floor consol ...
