Chevrolet Sonic Repair Manual: Front Floor Console Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Center Console / Front Floor Console Replacement



Front Floor Console Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the right and left front floor console extensions. Refer to Front Floor Console Extension Replacement - Right Side and Front Floor Console Extension Replacement - Left Side.
  2. Remove the front floor console cover assembly. Refer to Front Floor Console Cover Replacement.

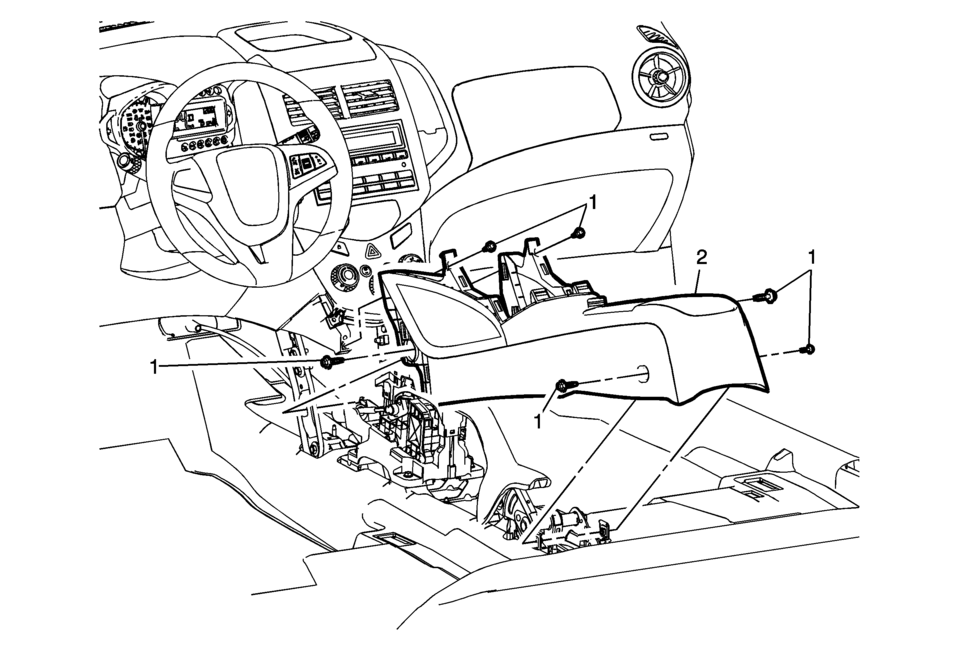

1

Front Floor Console Fasteners (Qty:?€‰6)

Caution:

Refer to Fastener Caution.

Procedure

Move the front seats to the full forward position to access the front floor console rear fasteners.

2

Front Floor Console

Procedures

  1. Disconnect the electrical connections.
  2. When replacing the console, transfer all necessary components.
Front Floor Console Multifunction Switch Replacement
