Chevrolet Sonic Repair Manual: Front Seat Belt Guide Adjuster Replacement (with AHU)

Chevrolet Sonic Repair Manual / Body / Restraints / Primary / Front Seat Belt Guide Adjuster Replacement (with AHU)



Front Seat Belt Guide Adjuster Replacement

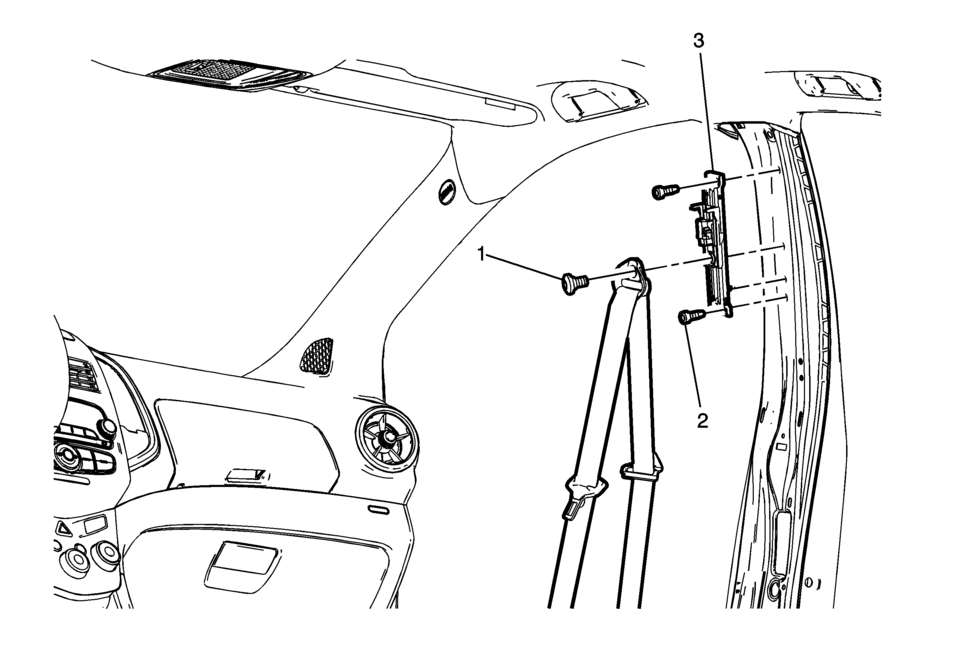

Callout

Component Name

Preliminary Procedures

Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement.

1

Driver or Passenger Seat Shoulder Belt Fastener

Caution:

Refer to Fastener Caution.

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

2

Front Seat Shoulder Belt Guide Adjuster Bolt (Qty:?€‰2)

Tighten


45?€‰Y?€‰(33?€‰lb?€‰ft)

3

Front Seat Shoulder Belt Guide Adjuster
