Front Side Door Lock Cylinder Replacement

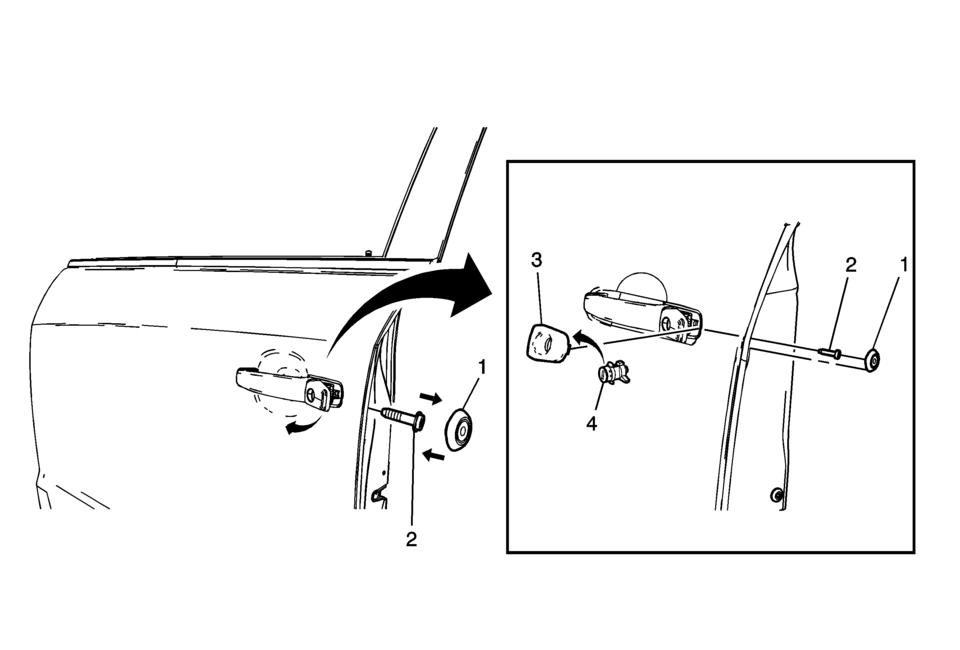

Callout

Component Name

1

Front Side Door Lock Cylinder Screw Access Plug

Tip:

Use the appropriate tool, remove the plug.

2

Front Side Door Lock Cylinder Clamp Screw

Caution:

Refer to Fastener Caution.

Procedure

Do Not remove the cylinder clamp screw completely from the housing, unscrew the screw to a hard stop, releasing the cylinder from the housing.

Tip:

It is not necessary to remove the outside door handle or housing to replace the lock cylinder.

Tighten


5?€‰Y (44?€‰lb?€‰in)

3

Front Side Door Lock Cylinder Cover

Procedure

Remove the lock cylinder cover. Refer to Front Side Door Lock Cylinder Opening Cover Replacement.

4

Front Side Door Lock Cylinder

Procedure

  1. Ensure that the lock cylinder gasket is in place when installing the lock cylinder to the handle.
  2. Inspect the lock cylinder for proper operation.
