Front Side Door Window Outer Sealing Strip Replacement

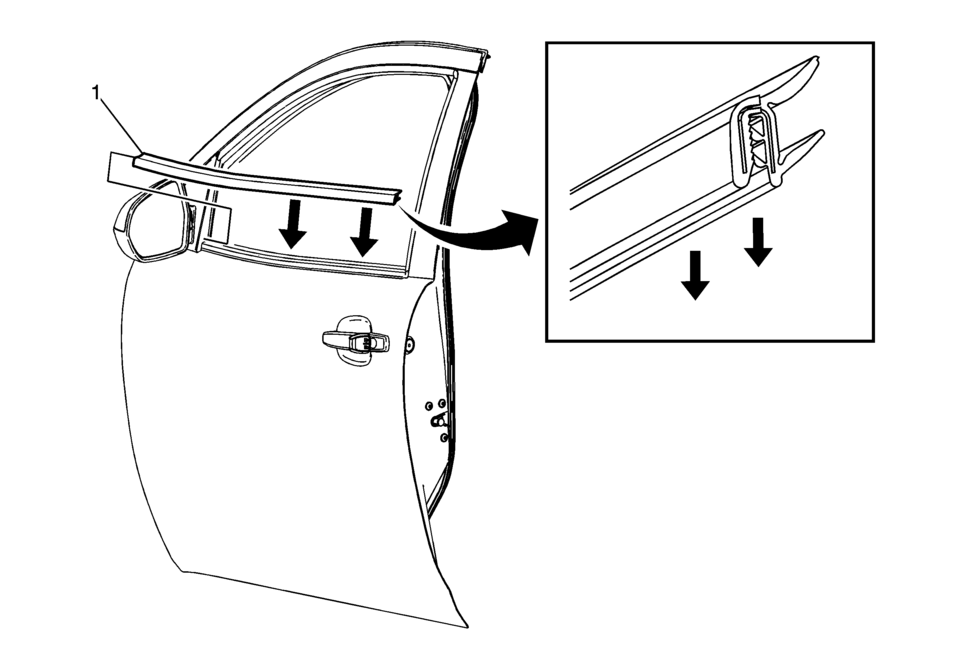

Callout

Component Name

1

Front Side Door Window Outer Sealing Strip

Procedure

  1. Do Not remove the outside rearview mirror.
  2. Use the appropriate tool, lift the rear corner of the sealing strip and pull upward and away from the door flange.
  3. Press firmly to insert the front side door window sealing strip back on the door flange.
  4. Inspect the door window for proper operation.
