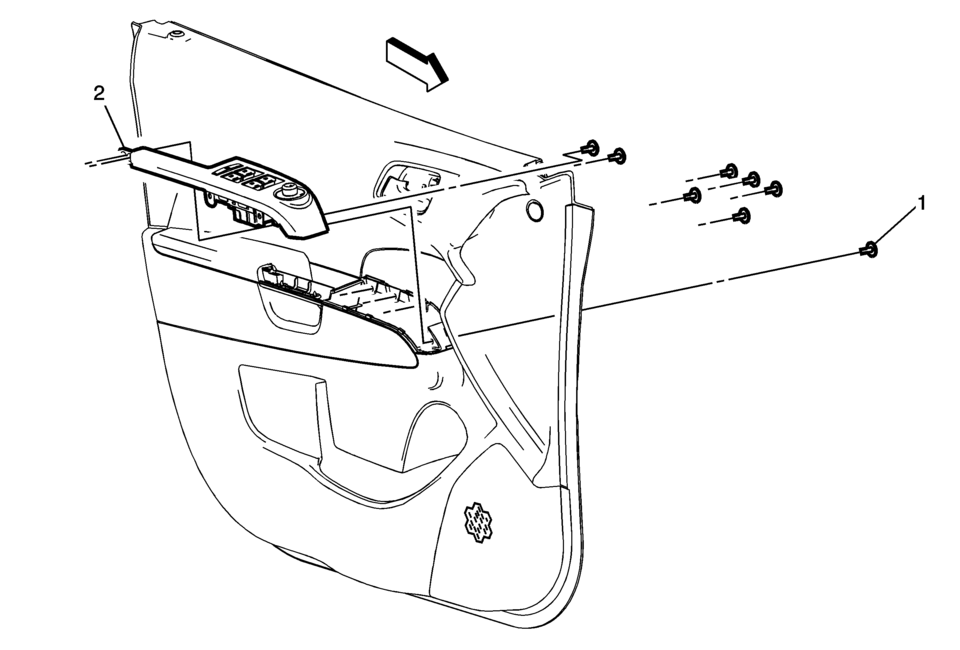

Front Side Door Window Switch Bezel Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door trim. Refer to Front Side Door Trim Replacement.

1

Front Side Door Window Switch Bezel Screw (Qty:?€‰8)

Caution:

Refer to Fastener Caution.

2

Front Side Door Window Switch Bezel Assembly
