Front Wheel Drive Shaft Seal Replacement - Left Side

Callout

Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
  2. Remove the front wheel drive shaft from the transmission. Refer to Front Wheel Drive Shaft Replacement.

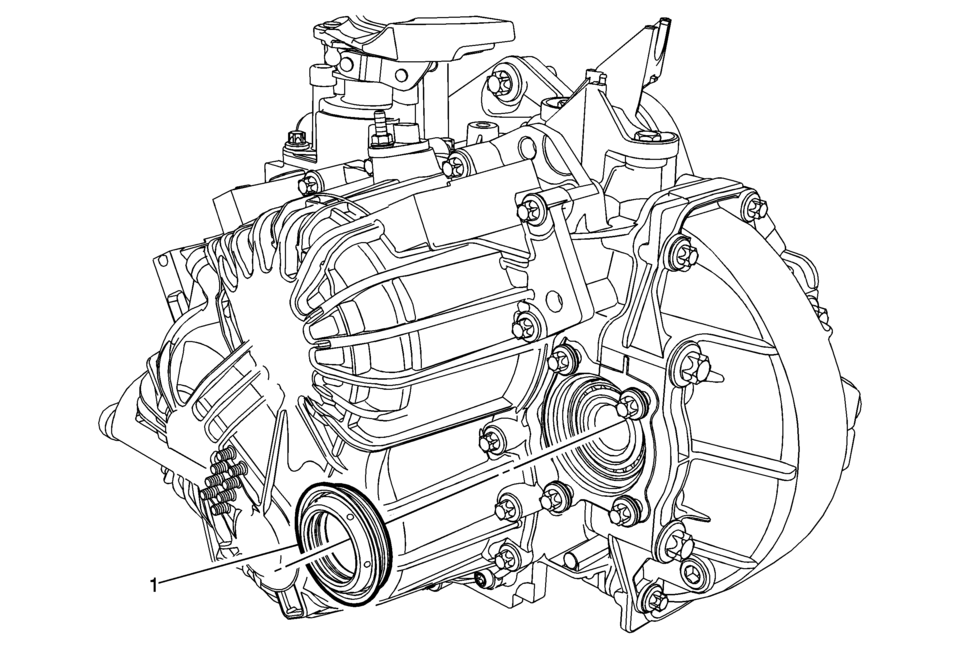

1

Left Front Wheel Drive Shaft Oil Seal

Procedure

  1. Remove the left front wheel drive shaft oil seal using the DT-7004 hammer and the DT-23129 universal seal remover.
  2. Coat the NEW left front wheel drive shaft oil seal with transmission fluid.
  3. Install the NEW left front wheel drive shaft oil seal using the DT-519 drift and hammer.

Note:

Do not reuse the wheel drive shaft oil seal.

Special Tools

  • DT-519 Installer Drift
  • DT-23129 Universal Seal Remover
  • DT-7004 Slide Hammer

For equivalent regional tools, refer to Special Tools.
