Front Wheelhouse Liner Replacement

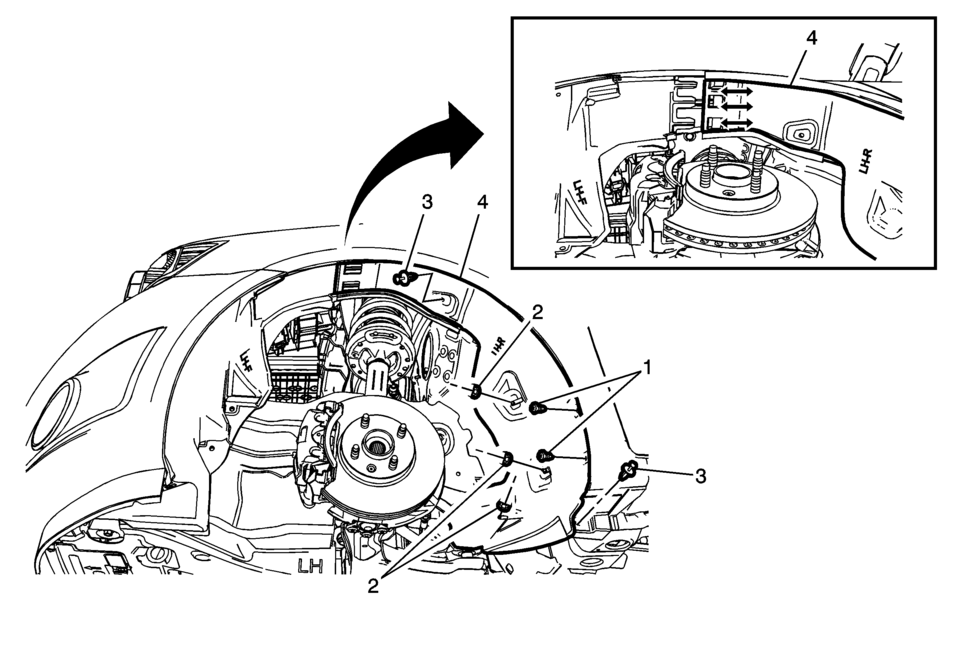

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

1

Front Wheelhouse Rear Liner Screw (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


3?€‰Y (27?€‰lb?€‰in)

2

Front Wheelhouse Rear Liner Nut (Qty:?€‰3)

Tighten


3?€‰Y (27?€‰lb?€‰in)

3

Front Wheelhouse Rear Liner Push-In Retainer (Qty:?€‰2)

4

Front Wheelhouse Rear Liner

Procedure

Disengage the upper interlocking retainers.
