Fuel Tank Filler Door Replacement

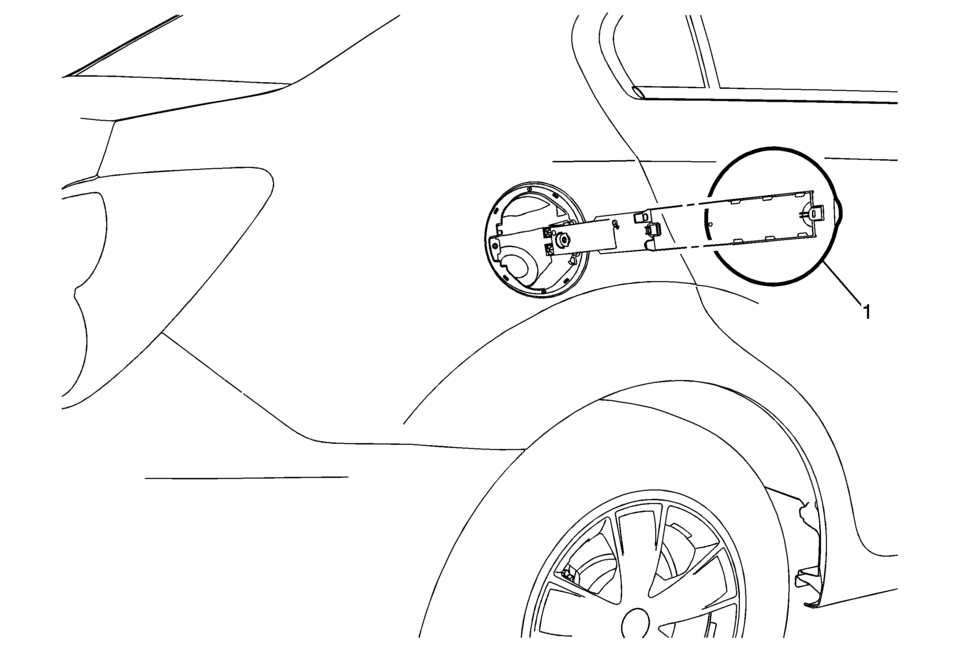

Callout

Component Name

1

Fuel Tank Filler Door

Procedure

Position the fuel tank filler door to the full open position. Using light outward sliding pressure on the filler door, release the retainer on the fuel tank filler door from the hinge.
