Chevrolet Sonic Repair Manual: Generator Installation

Chevrolet Sonic Repair Manual / Electrical / Charging / Generator Installation

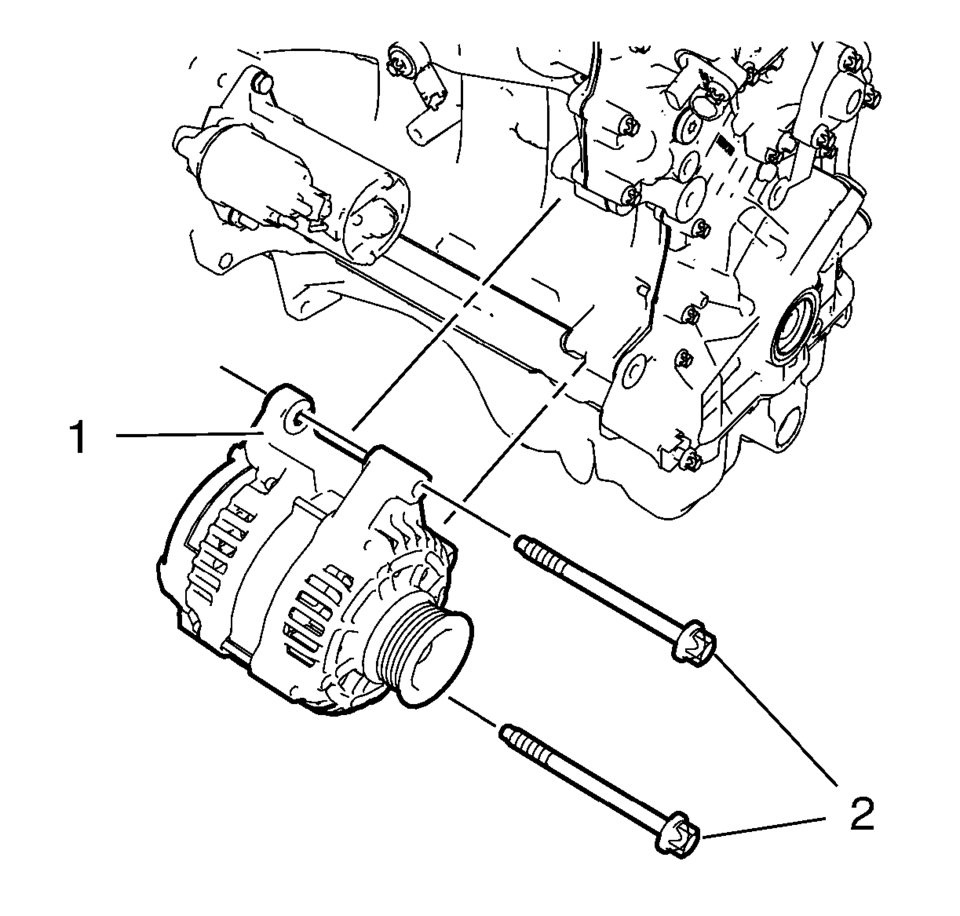

    Install the generator (1).
  1. Install the generator (1).
  2. Caution:

    Refer to Fastener Caution.

  3. Install the 2 generator bolts (2) and tighten to  35 Y (26 lb ft)

    .
