Headlamp Housing Bracket Replacement

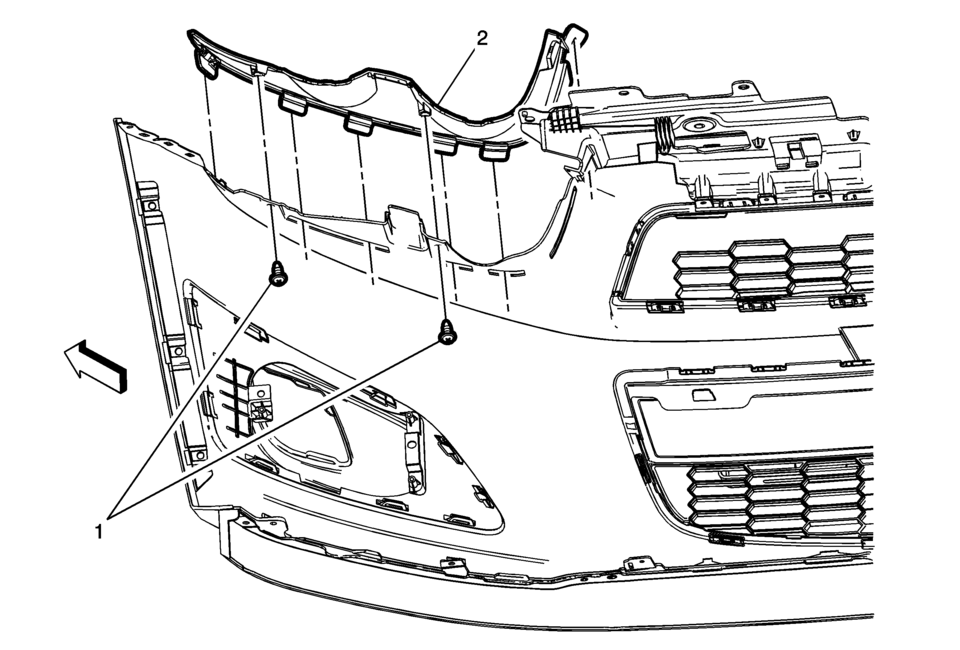

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Headlamp Housing Bracket Screw (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


2.5?€‰Y (22?€‰lb?€‰in)

2

Headlamp Housing Bracket

Procedure

Release the tabs on the housing bracket from the front bumper fascia and remove.
