Chevrolet Sonic Repair Manual: Headlamp Replacement



Headlamp Replacement

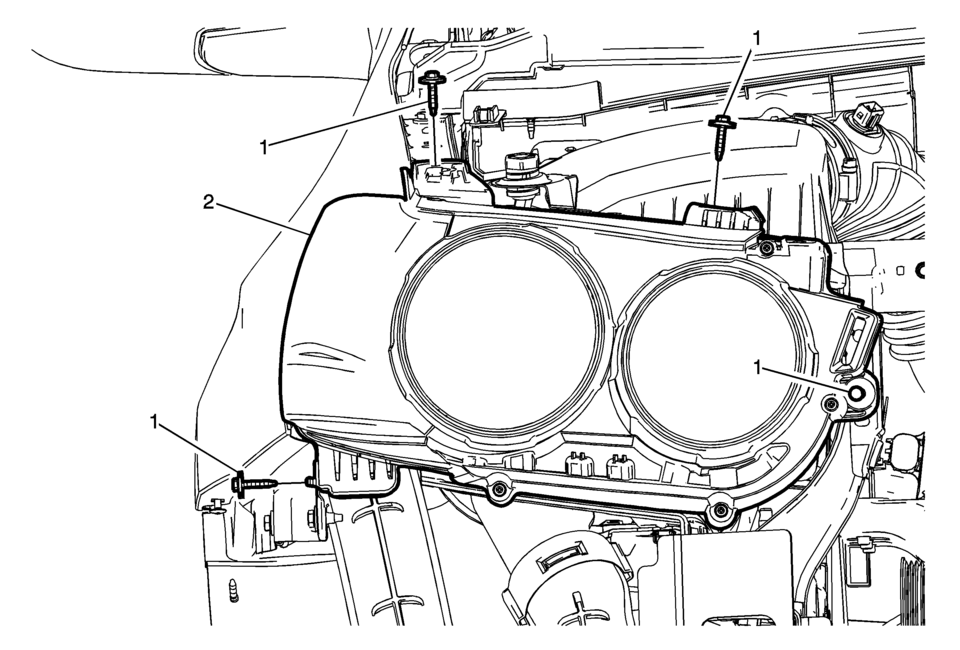

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.

1

Headlamp Assembly Screw (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


2.5?€‰Y (22?€‰lb?€‰in)

2

Headlamp Assembly

Procedure

  1. Disconnect the electrical connector bulb harness and remove the headlamp assembly.
  2. Aim the headlamps after replacement. Refer to Headlamp Aiming.
