Chevrolet Sonic Repair Manual: Heater and Air Conditioning Evaporator Case Replacement

Chevrolet Sonic Repair Manual / HVAC / Cooling / Heater and Air Conditioning Evaporator Case Replacement



Air Conditioning (A/C) Evaporator Case Assembly Replacement

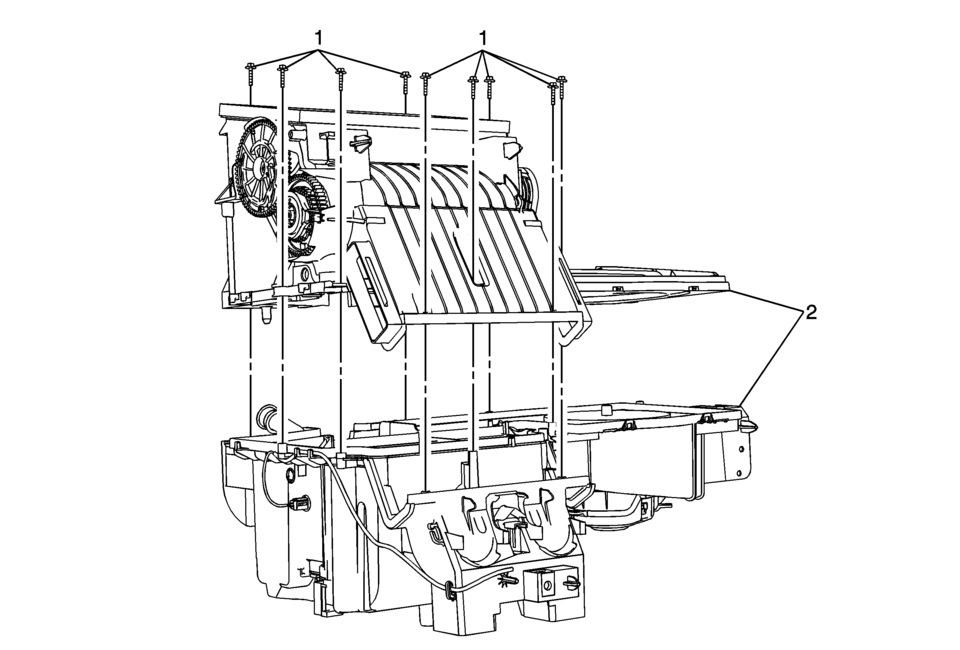

Callout

Component Name

Preliminary Procedure

  1. Remove the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement.
  2. Remove HVAC module. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation.
  3. Remove air inlet assembly Refer to Air Inlet Assembly Replacement

1

Heater and Air Conditioning Evaporator Case Fasteners (Qty: 9)

Caution:

Refer to Fastener Caution.

2

Upper Heater and Air Conditioning Evaporator Case

Evaporator Air Temperature Sensor Replacement (LHD)
Evaporator Air Temperature Sensor Replacement Callout Component Name 1 Evaporator Air Refrigerant Temperature Sensor ...

Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
Heater and Air Conditioning Evaporator and Blower Module Removal and Installation Callout Component Name Preliminary Procedures ...
