Chevrolet Sonic Repair Manual: Heater Inlet Hose Replacement (LUV)

Chevrolet Sonic Repair Manual / HVAC / Heating / Heater Inlet Hose Replacement (LUV)

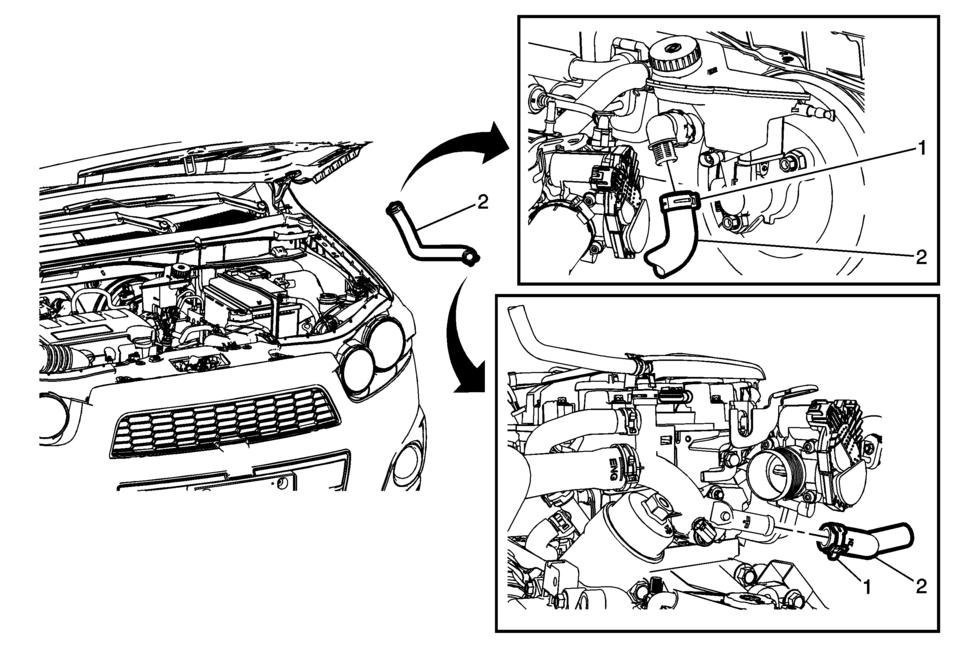

Heater Inlet Hose Replacement

Callout

Component Name

Preliminary Procedures

  1. Drain the engine coolant. Refer to Cooling System Draining and Filling.
  2. Remove the charge air cooler outlet hose. Refer to Charge Air Cooler Outlet Air Hose Replacement.

1

Heater Inlet Hose Clamp (Qty: 2)

Special Tools

BO-38185 Hose Clamp Pliers

For equivalent regional tools, refer to Special Tools.

2

Heater Inlet Hose
