Instrument Panel Compartment Replacement

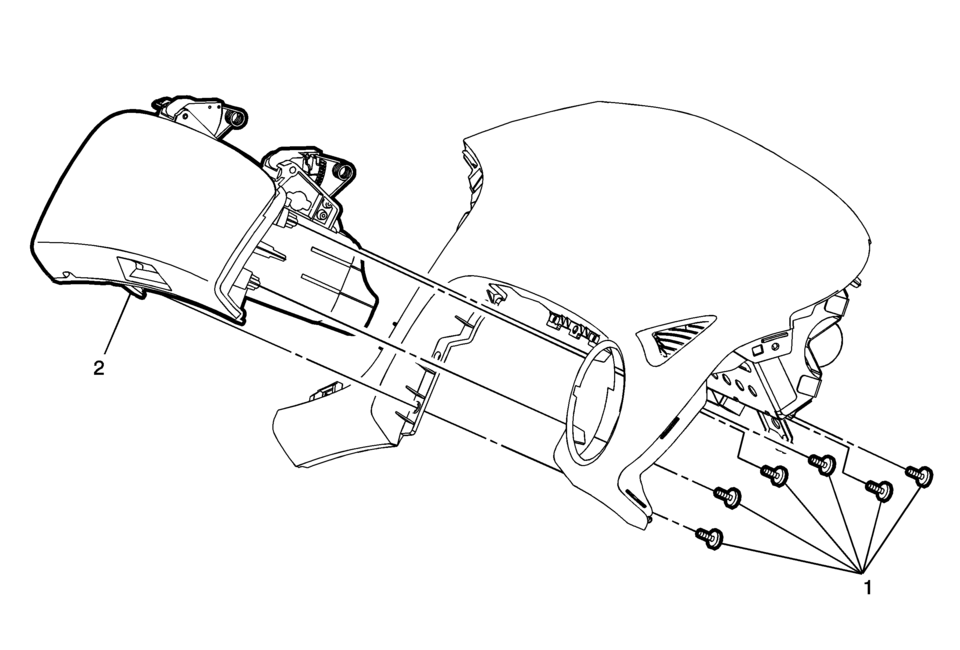

Callout

Component Name

Preliminary Procedure

Remove the right instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Right Side.

1

Instrument Panel Compartment Fastener (Qty:?€‰6)

Caution:

Refer to Fastener Caution.

2

Instrument Panel Compartment

Procedure

When replacing the instrument panel compartment, transfer all necessary components if applicable.
