Chevrolet Sonic Repair Manual: Instrument Panel Knee Bolster Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Center Console / Instrument Panel Knee Bolster Replacement



Instrument Panel Knee Bolster Replacement

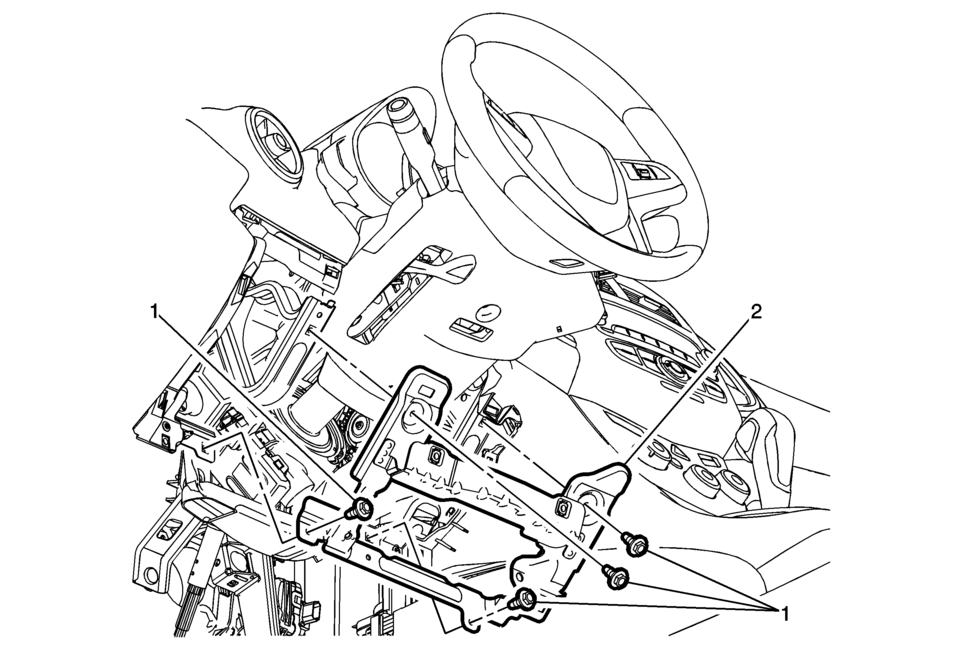

Callout

Component Name

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling.
  2. Remove the driver inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Driver Side.

1

Instrument Panel Knee Bolster Fasteners (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y (80?€‰lb?€‰in)

2

Instrument Panel Knee Bolster

Instrument Panel Insulator Replacement
