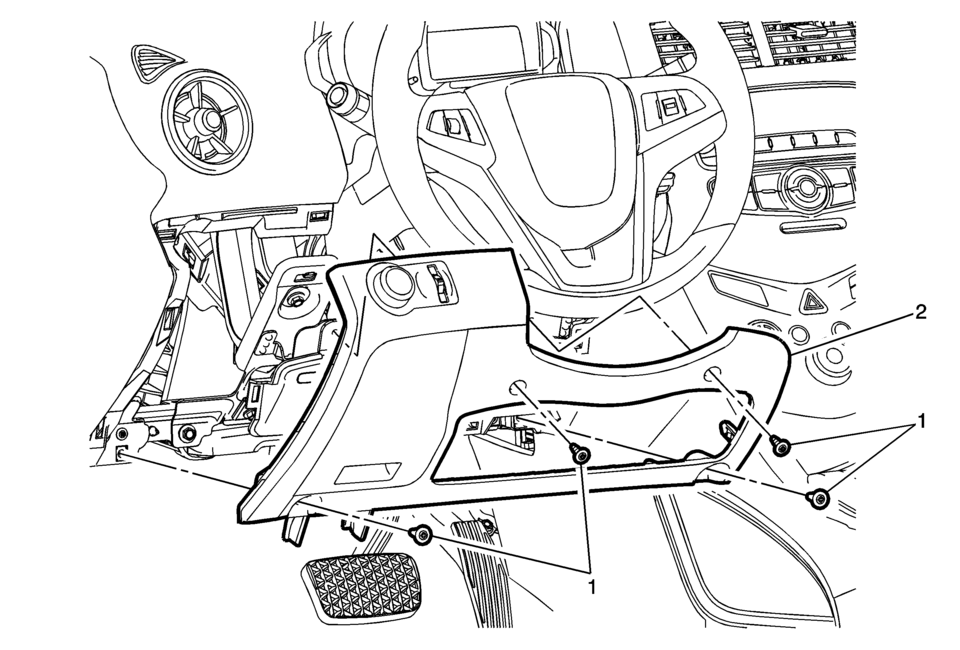

Instrument Panel Lower Trim Pad Cover Replacement

Callout

Component Name

Preliminary Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling.

1

Instrument Panel Lower Trim Pad Fastener (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

2

Instrument Panel Lower Trim Pad Cover

Procedures

  1. Use a flat bladed plastic trim tool in order to disengage the retainers securing the lower trim pad cover to the instrument panel assembly.
  2. Disconnect the electrical connectors.
  3. When replacing the instrument panel lower trim pad, transfer all necessary components.
