Chevrolet Sonic Repair Manual: Intake Manifold Installation (1.8L LUW and LWE)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Intake and Forced Induction / Intake Manifold / Intake Manifold Installation (1.8L LUW and LWE)

  1. Clean the sealing surfaces.
  2. Install 4 NEW gaskets.

  3. Caution:

    Refer to Fastener Caution.

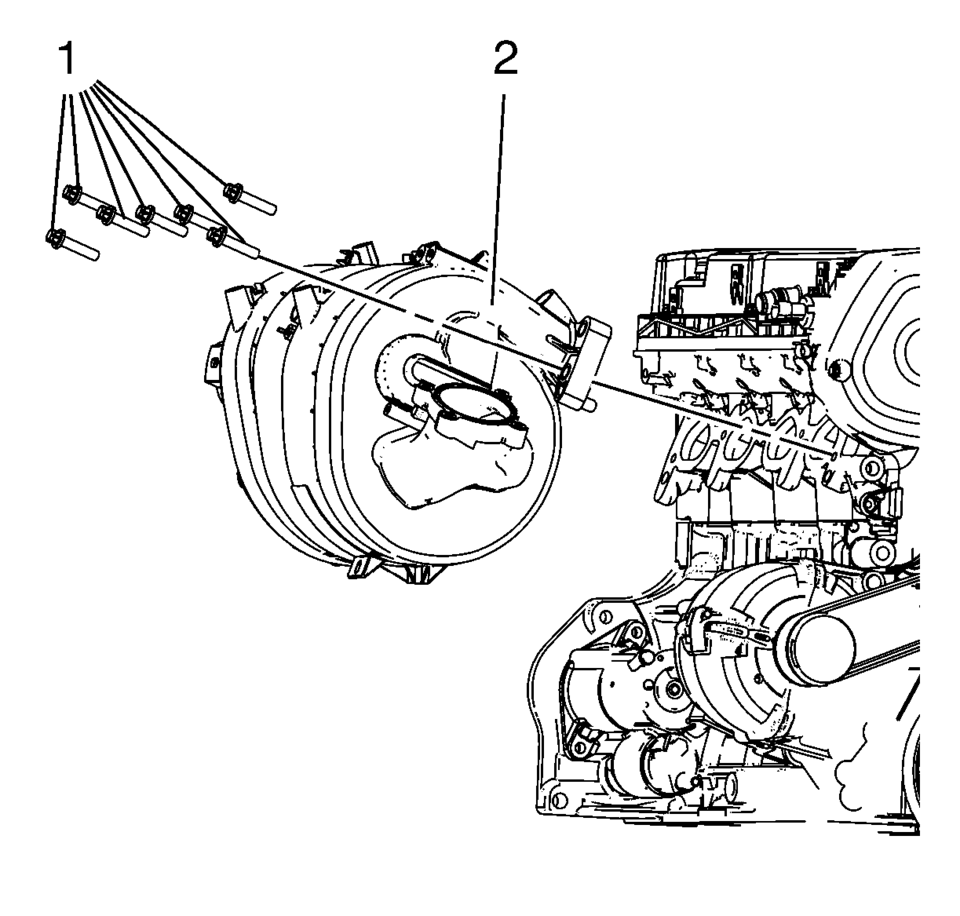

  4. Install the intake manifold (2) and the 7 intake manifold bolts (1) and tighten to  20 Y (15 lb ft)

    .

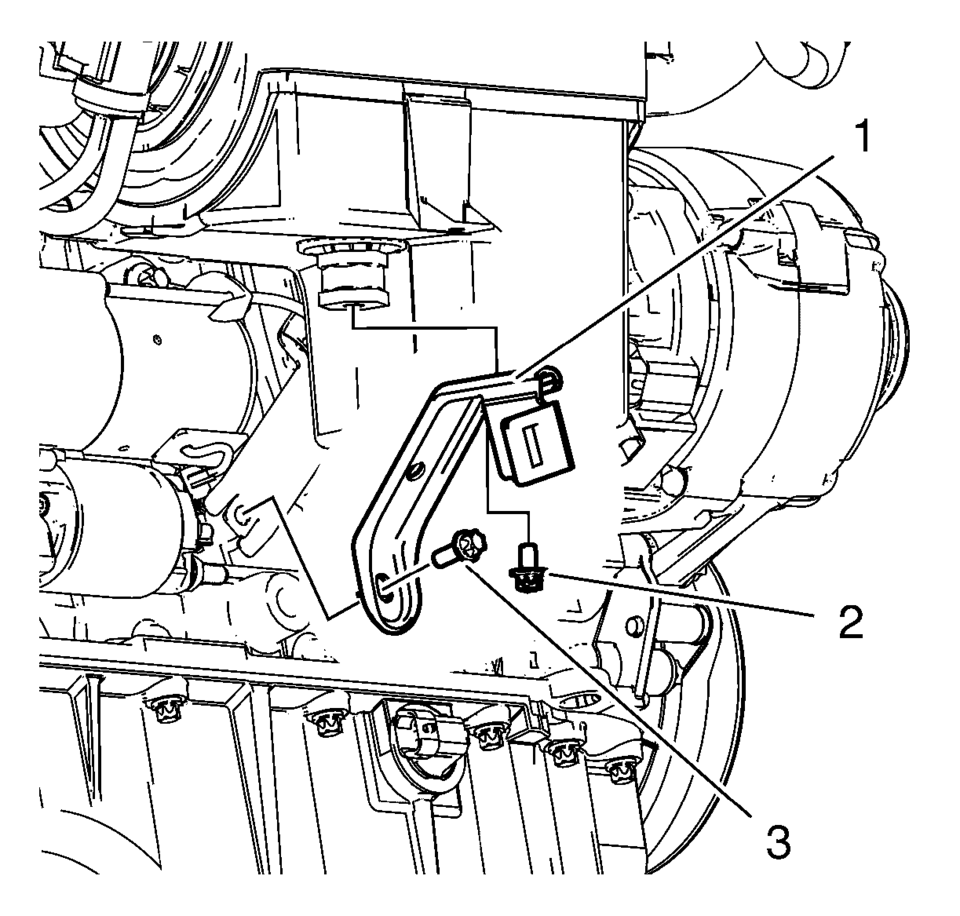

  5. Install the intake manifold brace (1).
  6. Install the 2 intake manifold brace bolts (2, 3) and tighten to  8 Y (71 lb in)

    .

Intake Manifold Installation (1.6L LDE)
Clean the sealing surfaces. Insert the NEW gasket. Caution: Refer to Fastener Caution. Install the intake manifold (2) and the 7 intake manifold bolts (1) and ...

Intake Manifold Removal
Note: Intake manifold bolts remain in intake manifold screw bores. Remove the 6 intake manifold bolts (1). Remove the intake manifold (1) along with th ...
