Chevrolet Sonic Repair Manual: Intake Manifold Tuning Valve Actuator Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Intake and Forced Induction / Intake Manifold / Intake Manifold Tuning Valve Actuator Replacement



Intake Manifold Tuning Valve Actuator Replacement

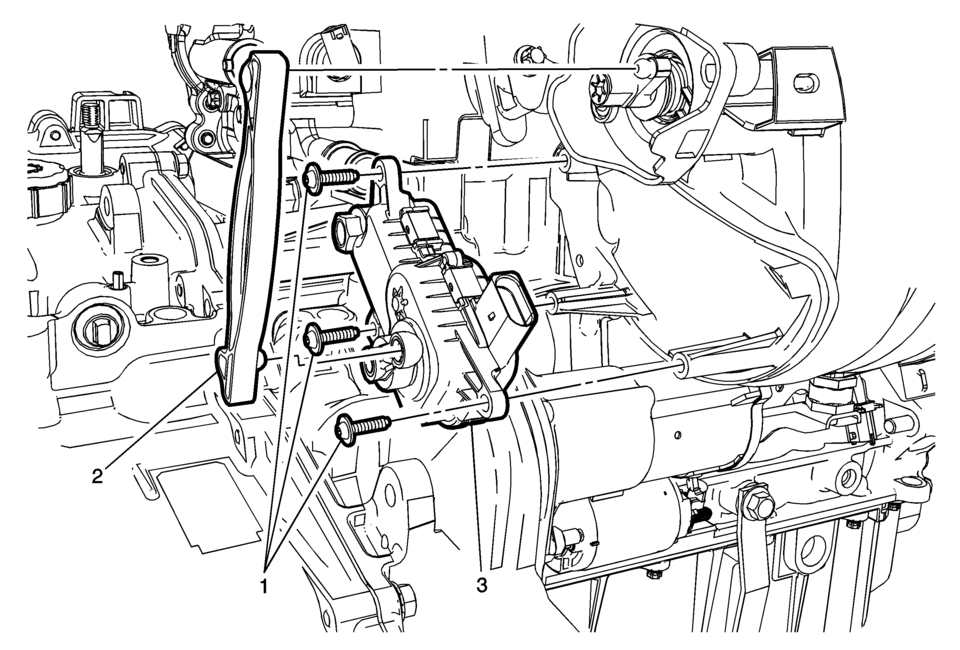

Callout

Component Name

Preliminary Procedure

Properly raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

1

Intake Manifold Runner Control Valve Actuator Solenoid Valve Fastener (Qty: 3)

Caution:

Refer to Fastener Caution.

Tighten


6 Y (53 lb in)

2

Intake Manifold Runner Control Valve Actuator Solenoid Linkage

3

Intake Manifold Runner Control Valve Actuator Solenoid

Procedure

Disconnect the wiring harness electrical connector from the intake manifold runner control valve actuator solenoid.

Intake Manifold Replacement (LUW)
Removal Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection. Remove the throttle body assembly. Refer to Throttle Body As ...

Intake Piping/Duct
...
