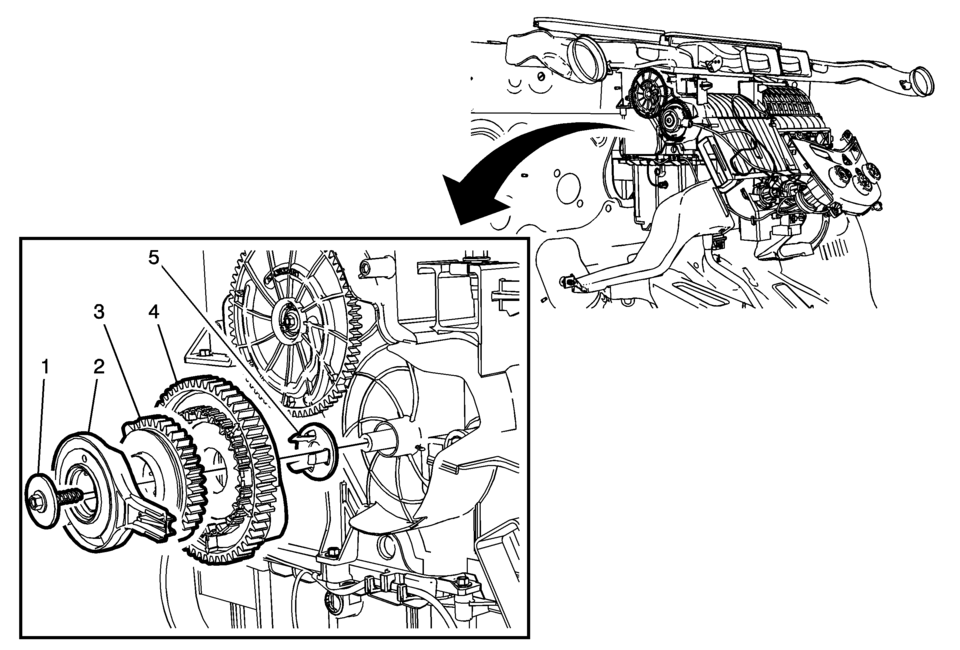

Callout |
Component Name |
|---|---|
Preliminary Procedures
|
|
|
1 |
Heater and A/C Control Mode Cam Screw Caution: Refer to Fastener Caution.
1.2 Y (11 lb in) |
|
2 |
Heater and A/C Control Mode Cable |
|
3 |
Heater and A/C Control Mode Cam Inner Gear |
|
4 |
Heater and A/C Control Mode Cam Outer Gear |
|
5 |
Heater and A/C Control Mode Cam Inner Gear Retainer |
Manual HVAC Description and Operation
Sun Load Temperature Sensor ReplacementFog Lamp Aiming
Preparation Procedure
Note: Horizontal aim is not adjustable on this vehicle. Vertical
aim is done by an adjusting nut located on the rear of the fog lamp. Prior
to aiming the fog lamps, perform the following steps:
Completely assemble all of the components on the vehi ...
Charging System Description and Operation
Electrical Power Management Overview
The electrical power management system is designed to monitor and control
the charging system and send diagnostic messages to alert the driver of possible
problems with the battery and generator. This electrical power management system
primarily ...
Torque Converter Housing with Fluid Pump Assembly Installation (6T40/45/50 Non
Hybrid)
Torque Converter Housing with Fluid Pump Assembly Installation
Callout
Component Name
1
Fluid Pump Seal Assembly
2
Torque Converter Housing Gasket
3
Torque Converte ...
