Chevrolet Sonic Repair Manual: Neutral - Engine Running (Gen 2)

Chevrolet Sonic Repair Manual / Powertrain / Engine / General / Neutral - Engine Running (Gen 2)

When the gear selector is moved to the Neutral (N) position, the hydraulic and electrical system operation is identical to Park (P) range. However, if Neutral is selected after the vehicle was operating in Reverse (R), the normally-low 35R pressure control solenoid is commanded OFF and the following changes would occur in the hydraulic system.

3-5 Reverse Clutch Releases

Manual Valve

The manual valve is moved to the Neutral position and blocks line pressure from entering the reverse fluid circuit. Reverse fluid, from the 3-5-reverse clutch regulator valve, the clutch select valve, and the default override valve is opened to an exhaust passage at the manual valve.

35R Pressure Control Solenoid

The 35R PC solenoid is commanded OFF allowing PCS 35 reverse clutch fluid from the 3-5-reverse clutch regulator valve to exhaust.

3-5-Reverse Clutch Regulator Valve

PCS 35 reverse clutch fluid exhausts, allowing 3-5-reverse clutch regulator valve spring force to move the 3-5-reverse clutch regulator valve to the released position. This allows exhausting 35 reverse clutch fluid pressure to pass into the exhaust backfill circuit in order to assist the 3-5-reverse clutch piston spring to quickly release the 3-5-reverse clutch.

3-5-Reverse Clutch

3-5-reverse clutch spring force, assisted by exhaust backfill pressure, moves the 3-5-reverse clutch piston to release the 3-5-reverse clutch plates and force 35 reverse clutch fluid to exhaust from the 3-5-reverse and 4-5-6 clutch housing assembly. The exhausting 35 reverse clutch fluid pressure is routed to the 3-5-reverse clutch regulator valve where it enters the exhaust backfill circuit.

Clutch Select Valve

When reverse fluid exhausts from the clutch select shuttle valve, shift solenoid fluid continues to hold the clutch select valve against clutch select valve spring force allowing 35 reverse clutch feed fluid to exhaust into the reverse circuit.

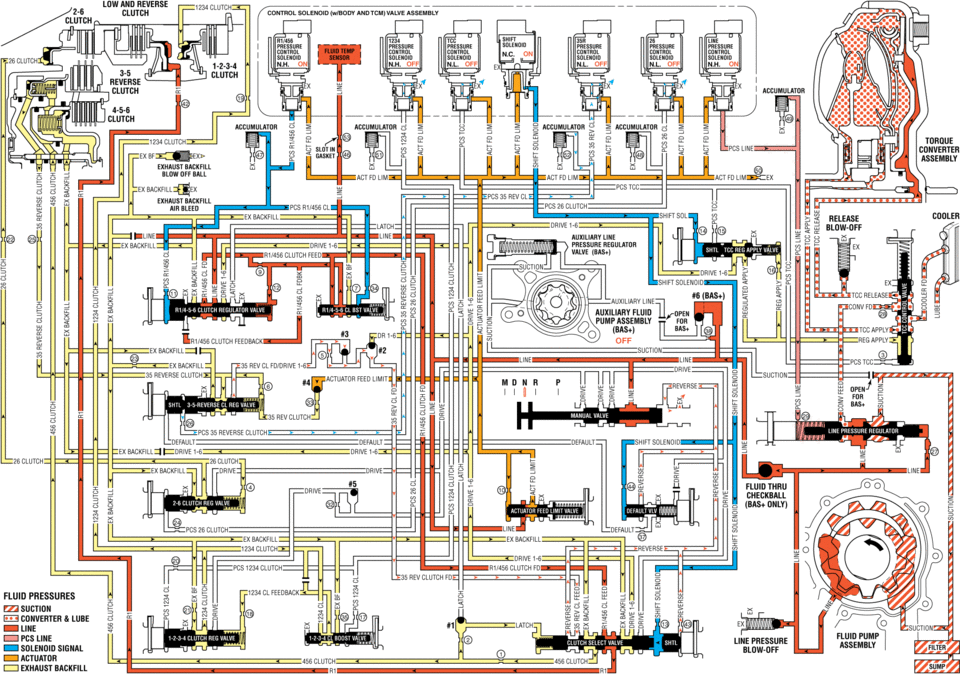

Neutral ?EEngine Running ?E#8201;Gen 2/Hybrid

ldwandreverseclutcu2_ni/i5presprepresspressuren.h.unoffoffoffaceumhlatgrclutch:i-id(atdrdueconverterassemblyexhaustactfdumfdexexnaustbackfillpcsclutchexbackhllreleasecddlehexbackhllclutchfffd(bas+)tccreleasecowfdauxiliaryfluid/-open(am)clutchfeedbackoffexsuctiunreverseclutchactuator-rsun35hfvclutchpcsreverseclutchdefaultdriveclutch:fluidthruchfckdallonlyfeedpcszgclutchexbackhllclutch:reversepcsclutchclutchrevclutchfluidpressuressucnouconverterlubelatchlinepressuresolenoidsignalclutchclutch:iexhaustbackfill
