Chevrolet Sonic Repair Manual: Oil Pan Removal

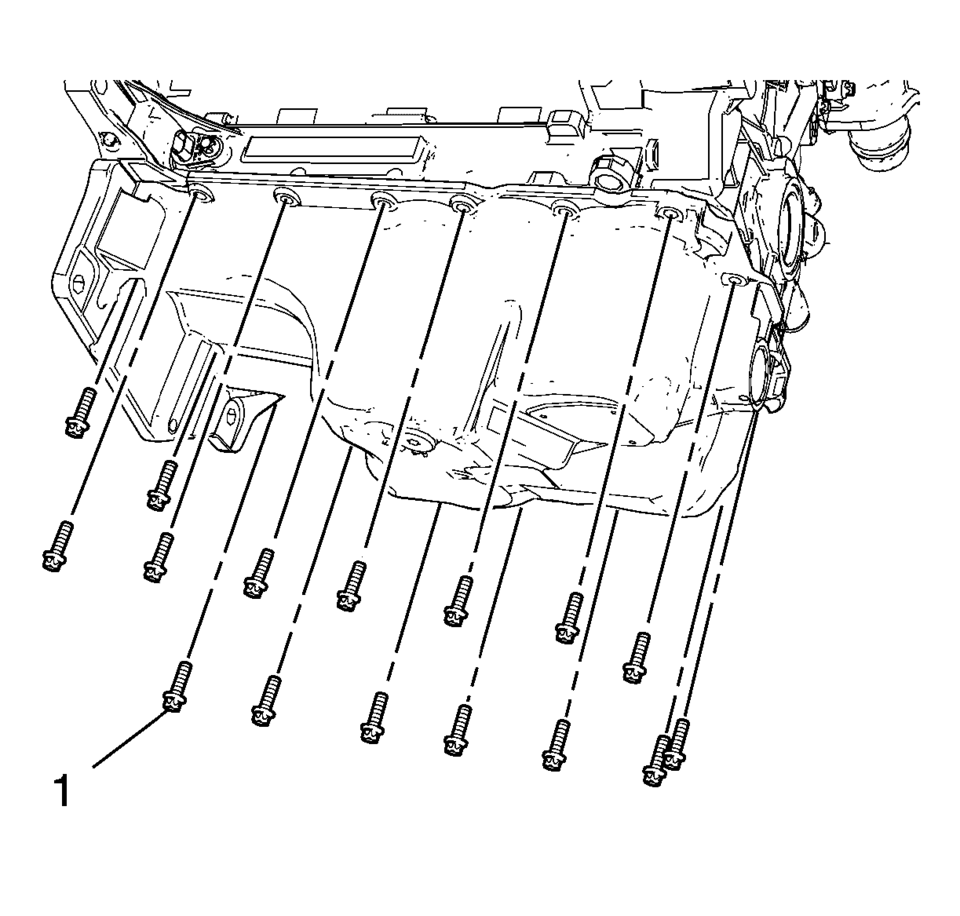

    Remove the 16 oil pan bolts (1).
  1. Remove the 16 oil pan bolts (1).

  2. Caution:

    Pry the oil pan carefully in order to prevent damage to the transaxle case or the oil pan sealing surfaces.

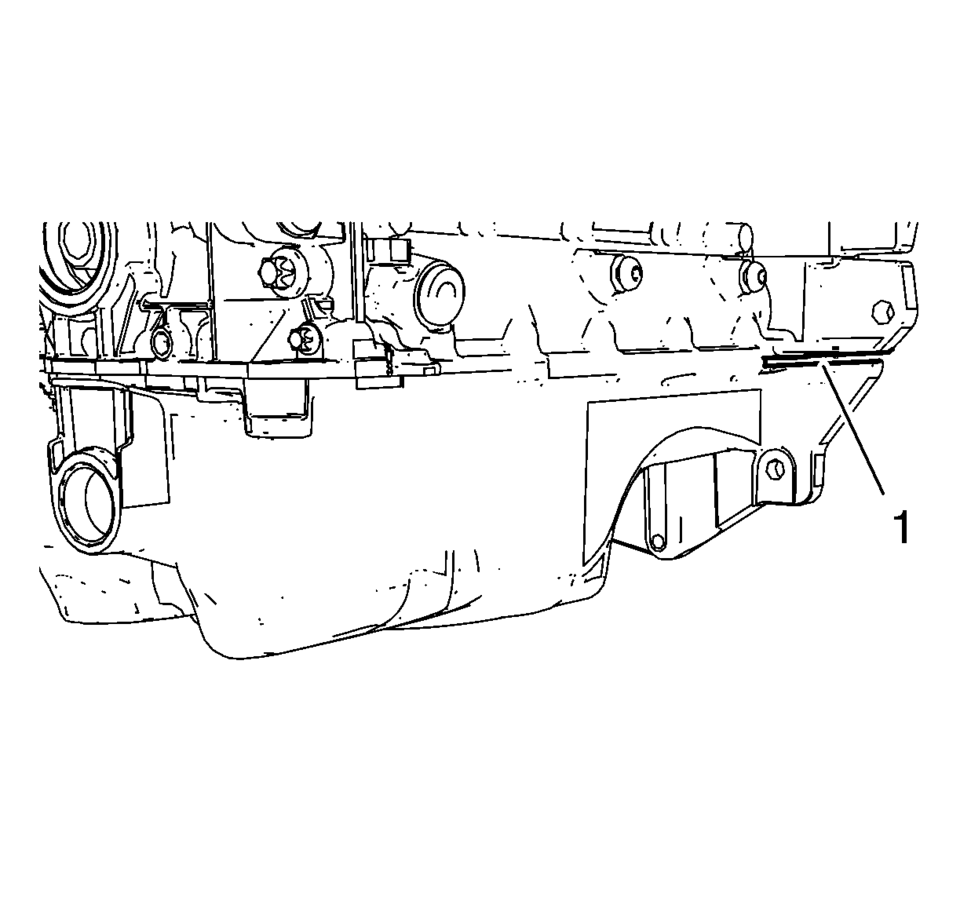

  3. Place a suitable prying tool to the area shown (1) and carefully pry the oil pan loose.

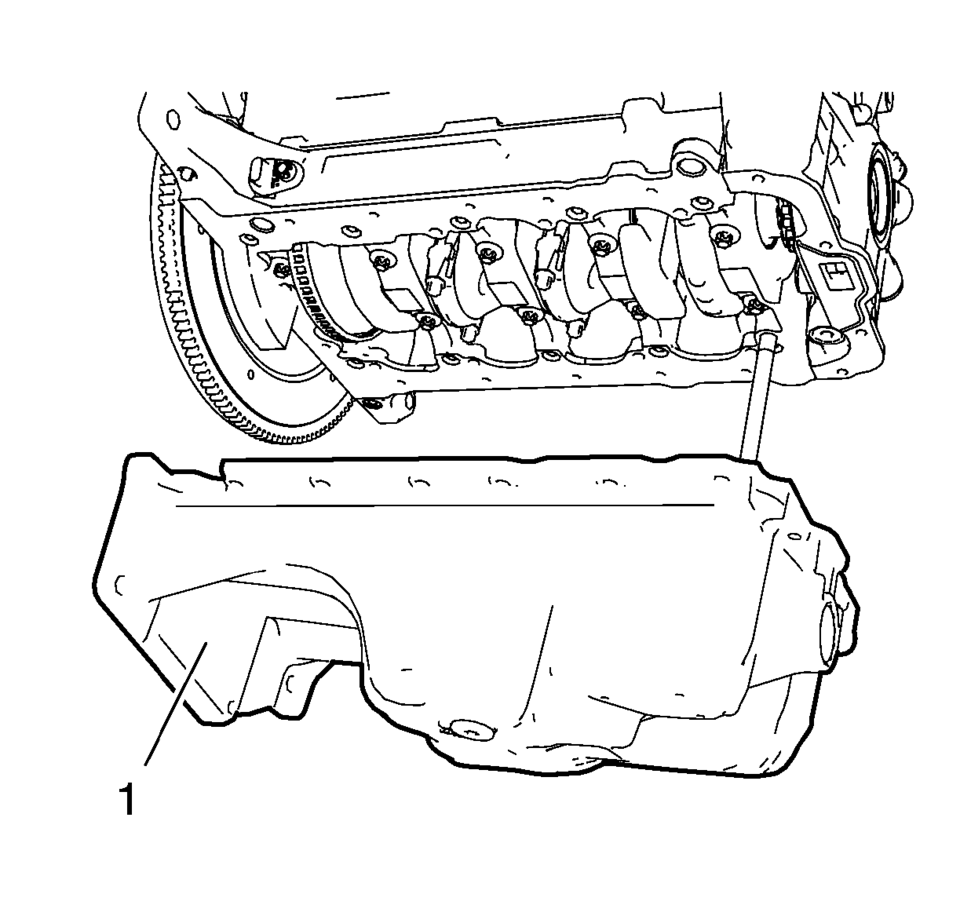

  4. Remove the oil pan (1).
Oil Pan Installation
Special Tools EN-49980 Guidance Pins For equivalent regional tools, refer to Special Tools. Clean the sealing surfaces from old sealing material, dirt, oil and grease. Note: The seal ...

Oil Pan Replacement
Special Tools EN-49980 Guidance Pins For equivalent regional tools, refer to Special Tools. Removal Procedure Remove the right front wheelhouse liner extension. Refer to Front Wheel ...
