Chevrolet Sonic Repair Manual: Power Steering Pump Belt Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Pulleys and Belts / Power Steering Pump Belt Installation

Special Tools

EN-50098 Belt Installer

For equivalent regional tools, refer to Special Tools.

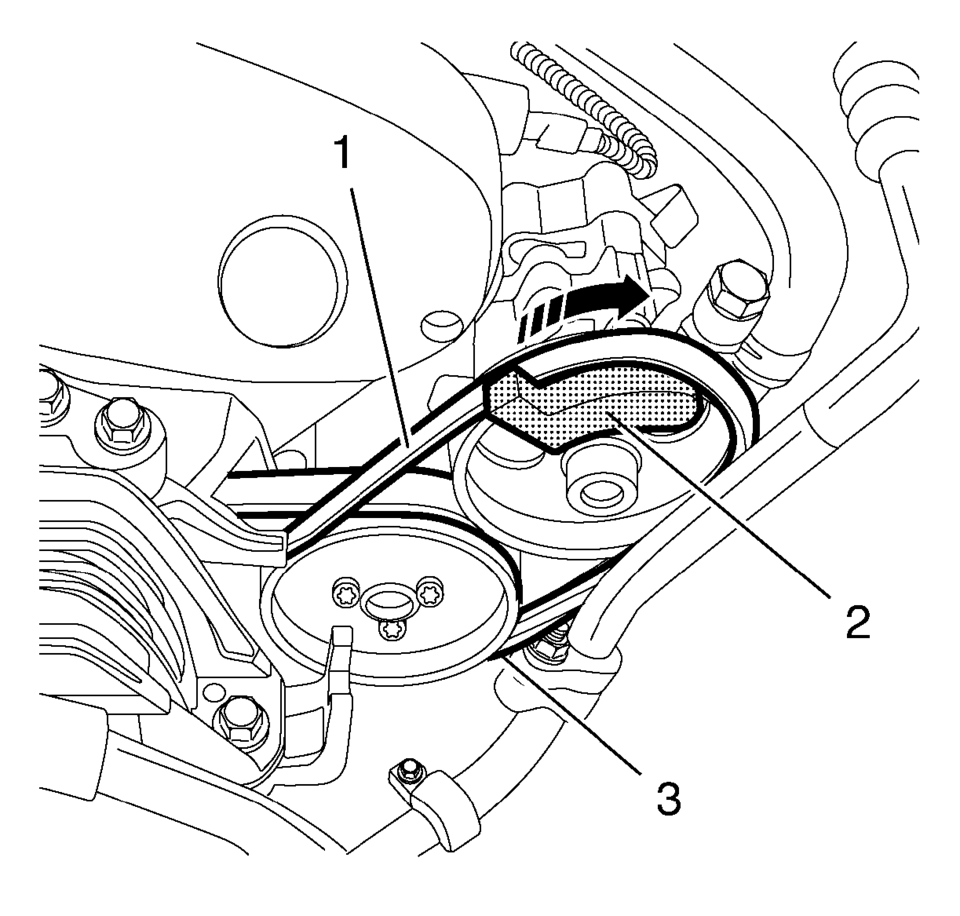

    Install EN-50098 installer  (2) and a NEW power steering pump belt (1)
  1. Install EN-50098 installer  (2) and a NEW power steering pump belt (1) to water pump pulley and power steering pump pulley.
  2. Turn the engine slowly clockwise at the crankshaft balancer bolt.
  3. During turn the engine take care of the proper installation of the power steering pump belt to the water pump pulley (3).
  4. Remove the EN-50098 installer  (2).
  5. Check the power steering pump belt is installed clearly.
Drive Belt Replacement
Special Tools EN-48488 Holding Wrench EN-955 Locking Pin For equivalent regional tools, refer to Special Tools. Removal Procedure Remove the right front wheelhouse liner extens ...

Power Steering Pump Belt Removal
Caution: Do not use belt dressing on the drive belt. Belt dressing causes the breakdown of the composition of the drive belt. Failure to follow this recommendation will damage the ...
