Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the radiator upper grille. Refer to Front Upper Grille Replacement. |
|
1 |

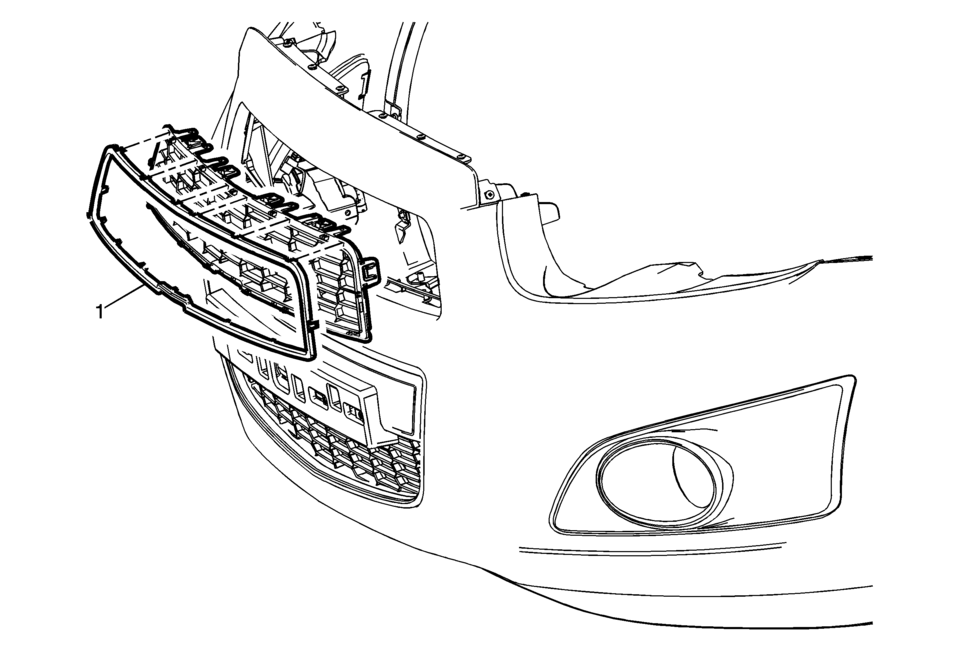

Radiator Grille Opening Cover (Upper) Procedure
Release the locking tabs securing the radiator opening grille cover to the radiator upper grille and remove. |
Generator Replacement (LUV)
Removal Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable
Disconnection and Connection.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove the drive belt. Refer to Drive Belt Replacement.
Remove the drive bel ...
Fuel Tank Fuel Pump Module Replacement
Special Tools
EN-48279 Fuel Sender Lock Ring Tool
For equivalent regional tools, refer Special Tools.
Removal Procedure
Relieve the fuel system pressure. Refer to Fuel Pressure Relief
Remove the fuel tank. Refer to Fuel Tank Replacement.
Disconnect the electrical c ...
Charge Air Cooler Outlet Air Hose Replacement
Removal Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
Loosen the clamp (1) at the charge air cooler outlet pipe (2) to throttle
body (3).
Disconnect the intake air pressure and temperature sensor harness connect ...
