Radiator Outlet Hose Replacement

Callout

Component Name

Preliminary Procedures

  1. Drain the engine coolant. Refer to Cooling System Draining and Filling.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement.
  3. Remove the radiator surge tank outlet hose from the radiator surge tank and position it out of the way. Refer to Radiator Surge Tank Outlet Hose Replacement.
  4. Remove the PCV Pipe assembly from the turbocharger and position it out of the way. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement.
  5. Remove the front compartment front insulator cover. Refer to Front Compartment Front Insulator Cover Replacement.

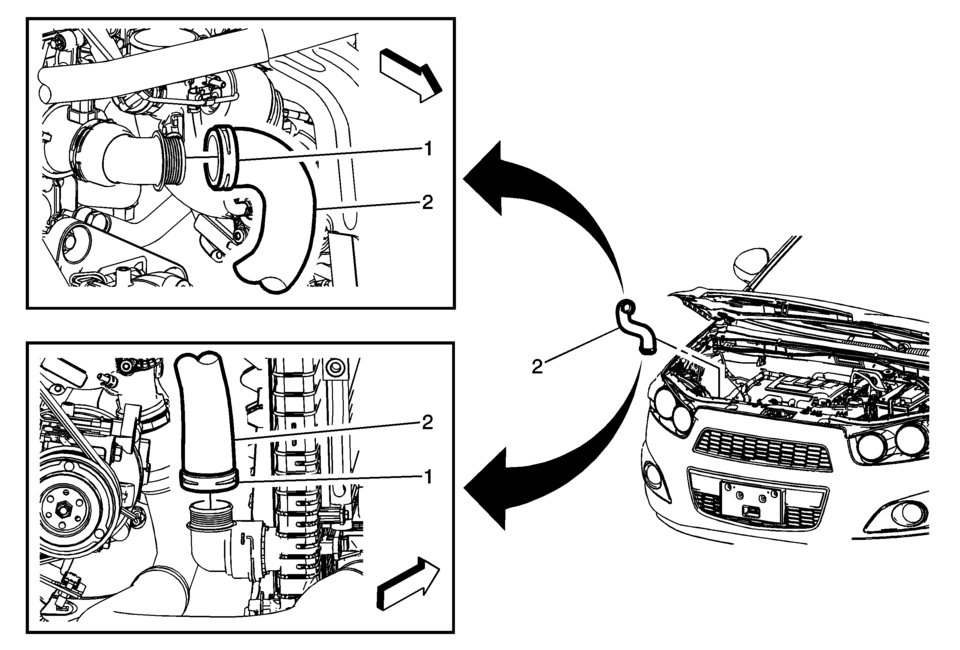

1

Radiator Outlet Hose Clamp (Qty: 2)

Special Tools

BO-38185 Hose Clamp Pliers

For equivalent regional tools, refer to Special Tools.

2

Radiator Outlet Hose

Radiator Outlet Hose Replacement (LDE LUW)
Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools. Removal Procedure Drain the cooling system. Refer to Cooling System Draining and Fill ...

Radiator Replacement (LDE LUW)
Radiator Replacement Callout Component Name Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling. ...
