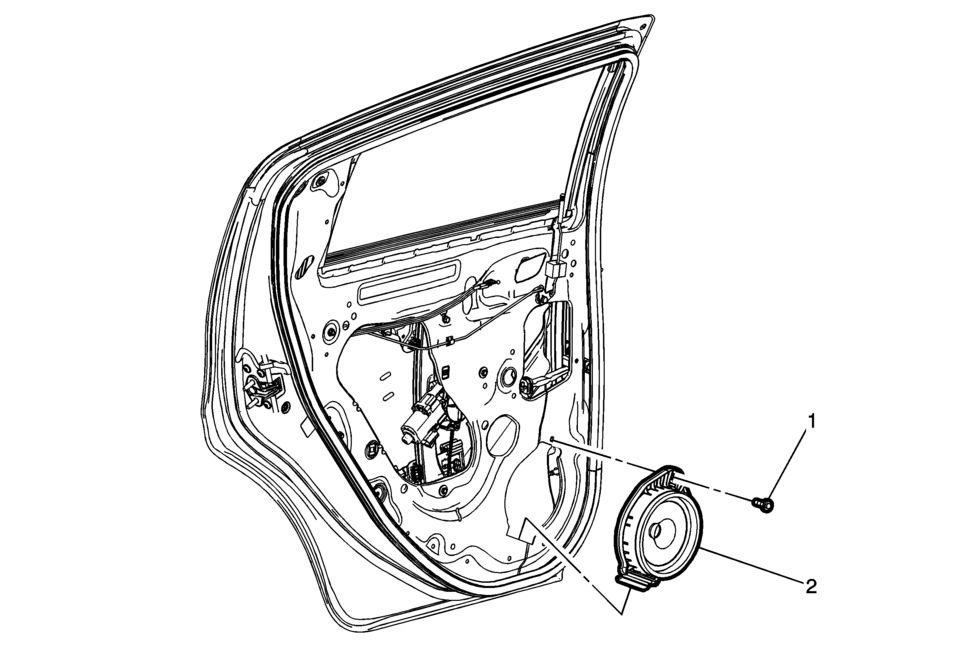

Radio Rear Side Door Speaker Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement.

1

Radio Rear Side Door Speaker Bolt

Caution:

Refer to Fastener Caution.

2

Radio Rear Side Door Speaker

Procedure

Disconnect the electrical connectors.
