Chevrolet Sonic Repair Manual: Rear Compartment Courtesy Lamp Replacement (Sedan)

Chevrolet Sonic Repair Manual / Body / Body Electrical / Lighting / Interior Lighting / Rear Compartment Courtesy Lamp Replacement (Sedan)

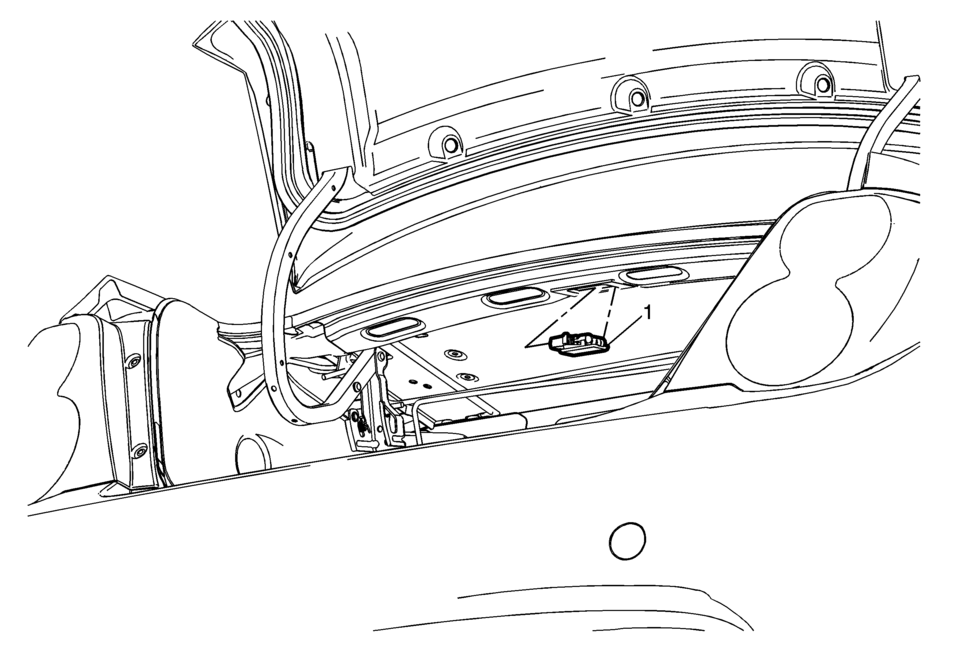

Rear Compartment Courtesy Lamp Replacement

Callout

Component Name

1

Rear Compartment Courtesy Lamp Assembly

Procedure

  1. Use the appropriate trim tool in order to release the lamp assembly from the rear quarter trim panel.
  2. Disconnect the electrical connection.
