Chevrolet Sonic Repair Manual: Rear Compartment Sill Trim Plate Replacement
|

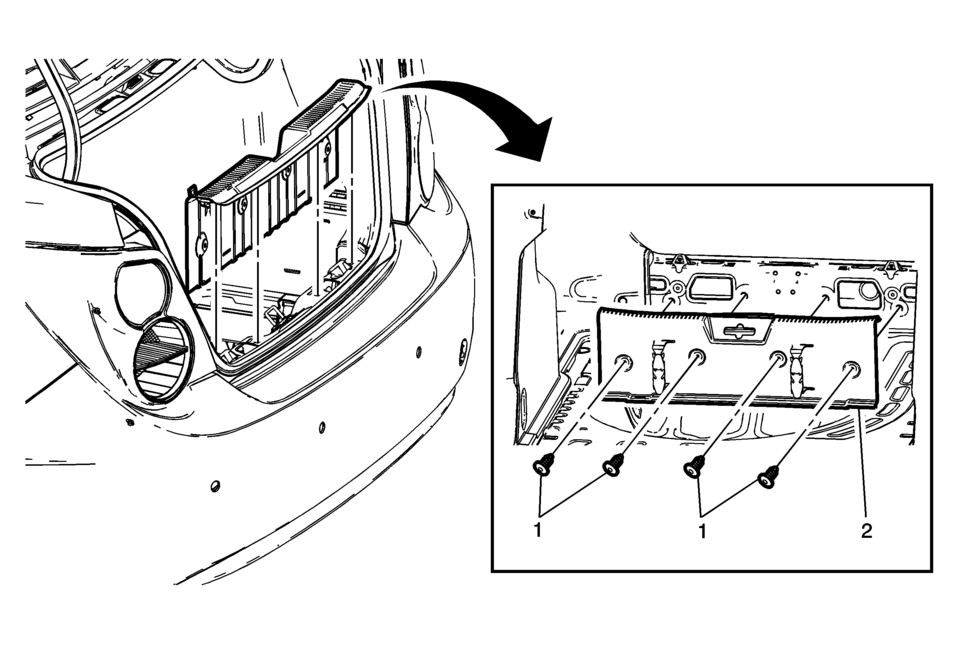

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Partially remove the rear compartment opening weatherstrip. Refer to Rear Compartment Lid Weatherstrip Replacement. |
|
|
1 |
Rear Compartment Sill Trim Plate Retainer (Qty:?€‰4) |
|
2 |
Rear Compartment Sill Trim Plate Assembly |
Rear Compartment Side Trim Replacement - Right Side (Sedan)
Rear Compartment Side Trim Replacement - Right Side
Callout
Component Name
Preliminary Procedures
Remove the rear compartment floor ...
Rear Compartment Stowage Shelf Replacement (Hatchback)
Rear Compartment Stowage Shelf Replacement
Callout
Component Name
1
Rear Compartment Stowage Shelf Assembly
...
