Rear Door Lock Cylinder Replacement

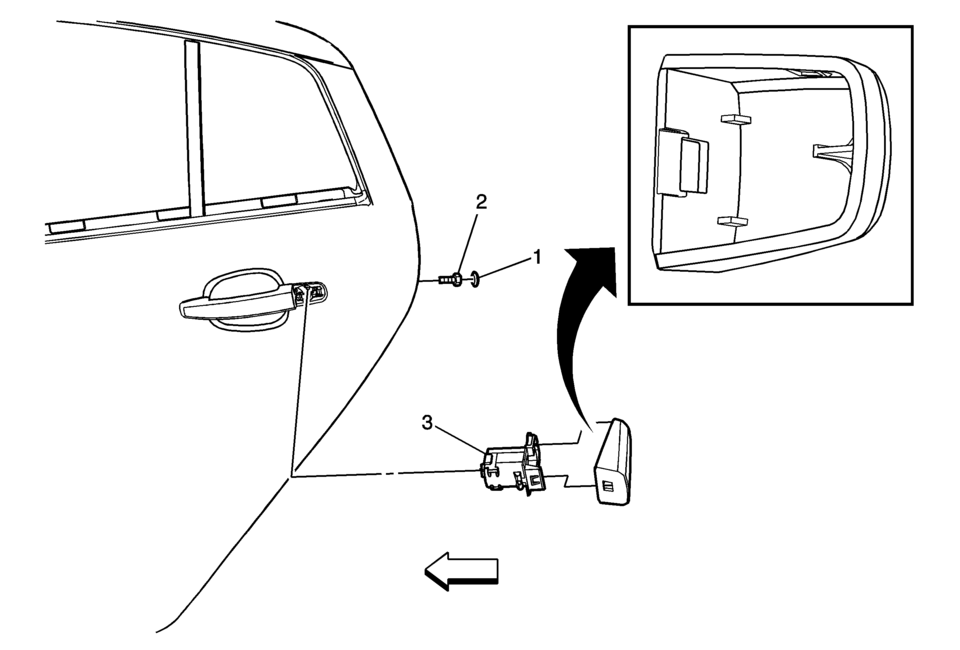

Callout

Component Name

1

Rear Side Door Lock Cylinder Opening Cover Screw Access Plug

Tip:

Use a flat-bladed tool to remove the cover.

2

Rear Side Door Lock Cylinder Clamp Screw

Caution:

Refer to Fastener Caution.

Procedure

Do Not remove the cylinder screw completely from the housing. unscrew the screw to a hard stop, remove the cylinder.

Tighten


5?€‰Y (44?€‰lb?€‰in)

3

Rear Side Door Lock Cylinder

Procedure

Remove the lock cylinder cover. Refer to Rear Side Door Lock Cylinder Opening Cover Replacement.
