Chevrolet Sonic Repair Manual: Rear End Spoiler Replacement (Hatchback TTV)

Chevrolet Sonic Repair Manual / Body / Body Exterior / Spoilers/Aero / Rear End Spoiler Replacement (Hatchback TTV)

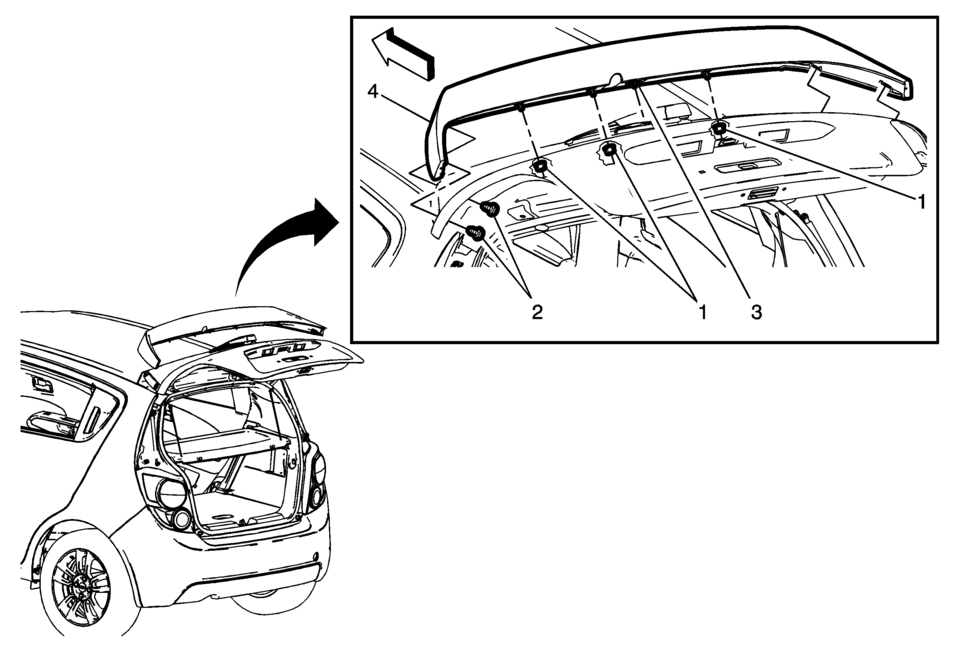

Rear End Spoiler Replacement

Callout

Component Name

Preliminary Procedure

Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement.

1

Rear End Spoiler Nut (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Tighten


5.0?€‰Y (44?€‰lb?€‰in)

2

Rear End Spoiler Screw (Qty:?€‰4)

Tighten


1.5?€‰Y (13?€‰lb?€‰in)

3

Clip Button

Tip:

Upon assembly of the rear spoiler to the liftgate, position and secure the clip button to the rear liftgate spoiler to liftgate outer panel first.

4

Rear End Spoiler Assembly
