Rear Seat Back Cushion Removal and Installation

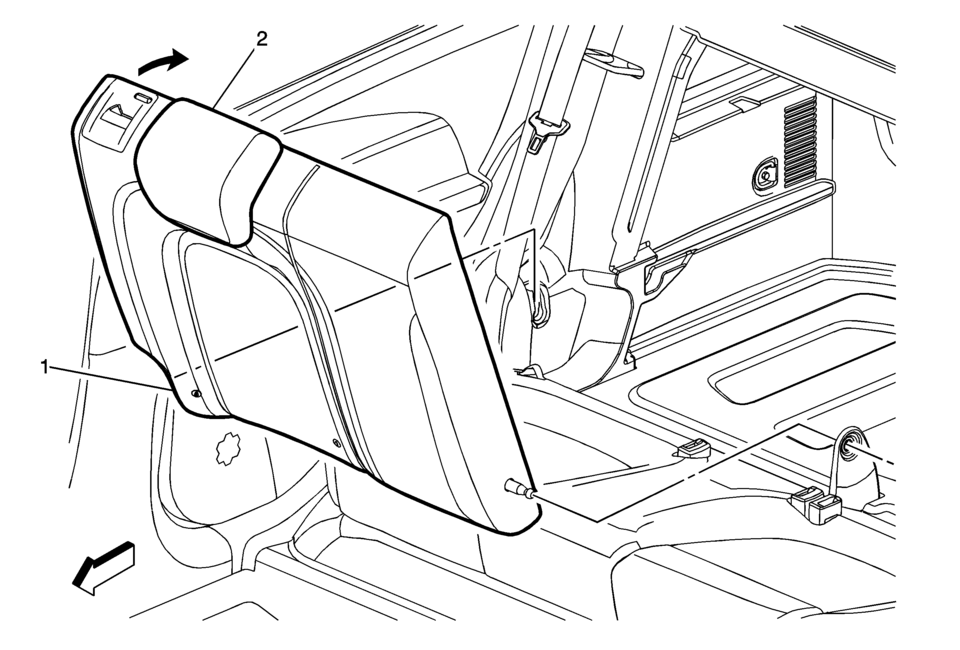

Callout

Component Name

Preliminary Procedure

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation.
  2. Remove the rear seat center retractor side belt lower fastener. Refer to Rear Seat Center Shoulder Belt Replacement.
  3. Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement

1

Rear Seat Back Cushion Pivot Support

Procedure

  1. Remove the rear seat back cushion 40% side.
  2. Remove the rear outboard shoulder belts from the shoulder belt bezel and position it out of the way.
  3. Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward.
  4. Push in on the rear seat back cushion pivot support, and release from bracket.

2

Rear Seat Back Cushion

Procedure

  1. Pull up on the outer side of the rear seat back cushion and remove the rear seat back cushion from the bracket and hinge.
  2. Transfer components as necessary.
