Rear Seat Shoulder Belt Guide Opening Bezel Replacement

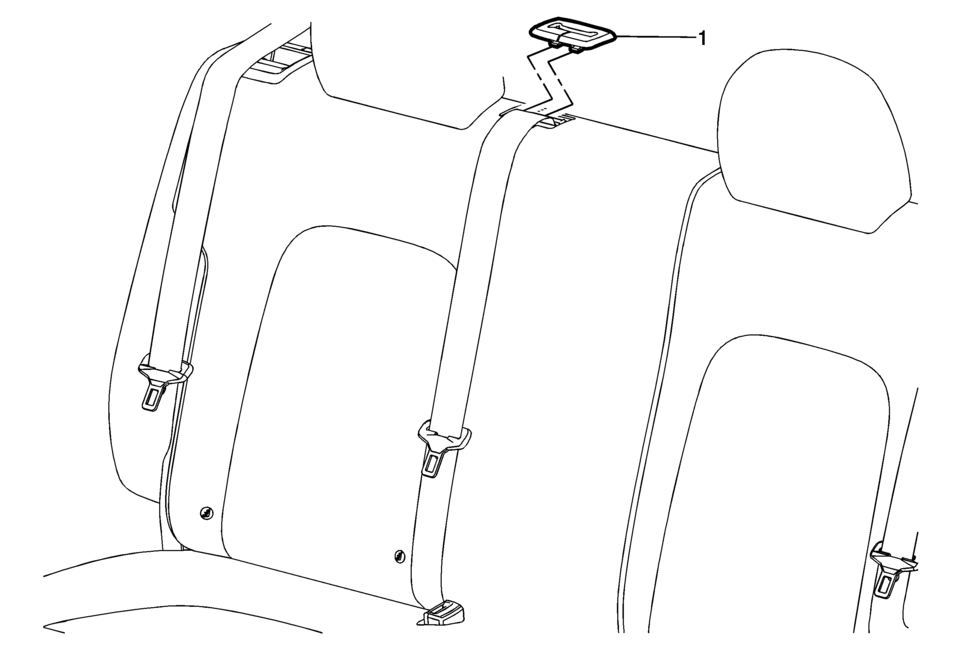

Callout

Component Name

1

Rear Seat Shoulder Belt Opening Bezel

Procedure

Push inward and upward from the front of the bezel to release from the seat back.

Note:

The rear seat shoulder belt opening bezel is part of the rear seat center belt assembly and is replaced as an assembly.
