Rear Side Door Check Link Replacement

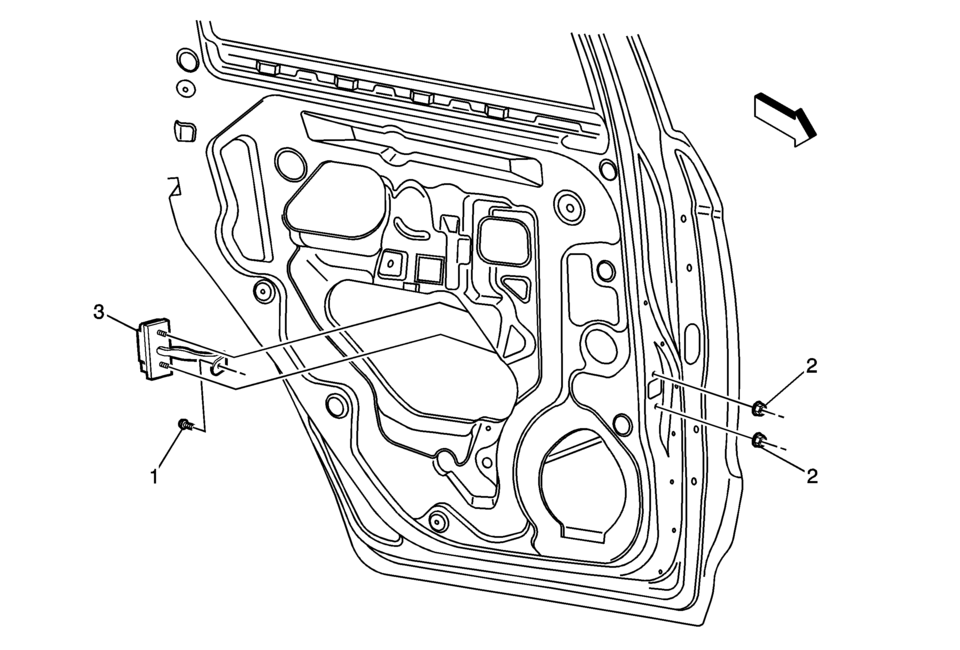

Callout

Component Name

Preliminary Procedures

  1. Move the window to the full up position.
  2. Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement

1

Rear Side Door Check Link Bolt to Body

Caution:

Refer to Fastener Caution

Tighten


22?€‰Y (16?€‰lb?€‰ft)

2

Rear Side Door Check Link Nut (Qty:?€‰2)

Procedure

Remove the water deflector.

Tighten


5.5?€‰Y (49?€‰lb?€‰in)

3

Rear Side Door Check Link Assembly

Rear Side Door Adjustment (4 Door Notch Back 69)
