Chevrolet Sonic Repair Manual: Rear Side Door Upper Rear Trim Panel Replacement (Hatchback)
|
Callout |
Component Name |
|---|---|
|
1 |

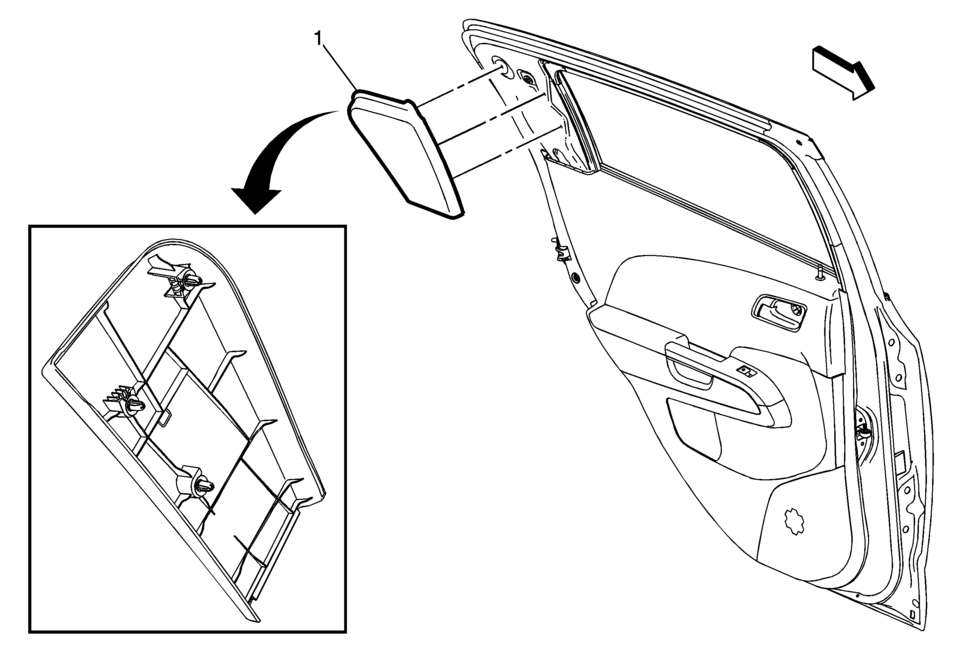

Rear Side Door Upper Rear Trim Panel Assembly Procedure
Pull the door upper rear trim panel away from the rear side door. |
Rear Side Door Trim Replacement (Sedan)
Rear Side Door Trim Replacement
Callout
Component Name
1
Rear Side Door Inside Handle Bolt Cap
2
...
Rear Side Door Window Switch Bezel Replacement
Rear Side Door Window Switch Bezel Replacement
Callout
Component Name
Preliminary Procedure
Remove the rear side door trim. Ref ...
