Chevrolet Sonic Repair Manual: Rear Wheelhouse Panel Liner Extension Replacement

Chevrolet Sonic Repair Manual / Body / Frame and Structure / Rear Wheelhouse Panel Liner Extension Replacement



Rear Wheelhouse Panel Liner Extension Replacement

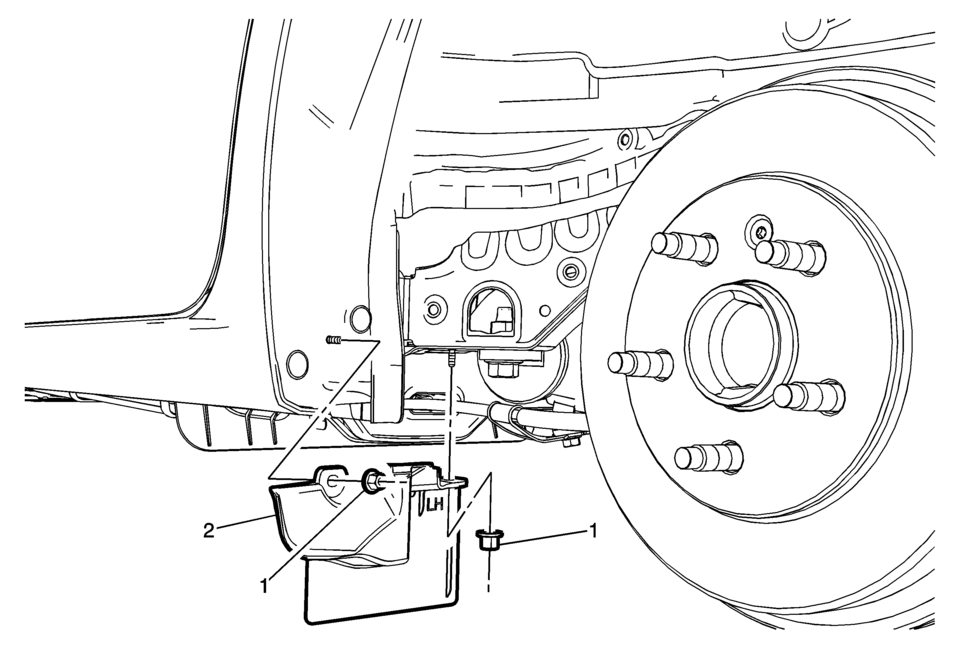

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

1

Rear Wheelhouse Panel Liner Extension Nut (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

2

Rear Wheelhouse Panel Liner Extension

Rear Wheelhouse Liner Replacement (Sedan - Right)
