The RKE transmitter may work up to 60m (195 ft) away from the vehicle.

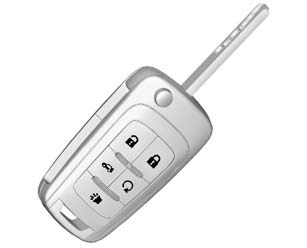

The RKE transmitter can have one of the two symbols for the remote trunk release.

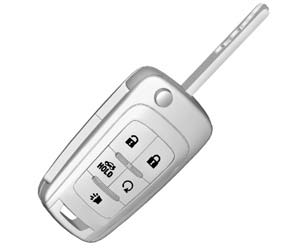

With Remote Start Shown

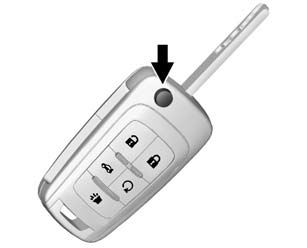

Press the key release button to extend the key blade. The key can be used for the ignition and all locks.
Press to unlock the driver door or
all doors.
Press to lock all doors.
Lock and unlock feedback can be personalized. See Vehicle Personalization.
If equipped, press and hold or
to release the trunk.
Press and release to initiate vehicle
locator.
Press and hold for at least three
seconds to sound the panic alarm.
Press again to cancel the panic alarm.
See Keys and Remote Keyless Entry (RKE) System Operation.
