Secondary Air Injection Pump Air Cleaner Pipe Replacement

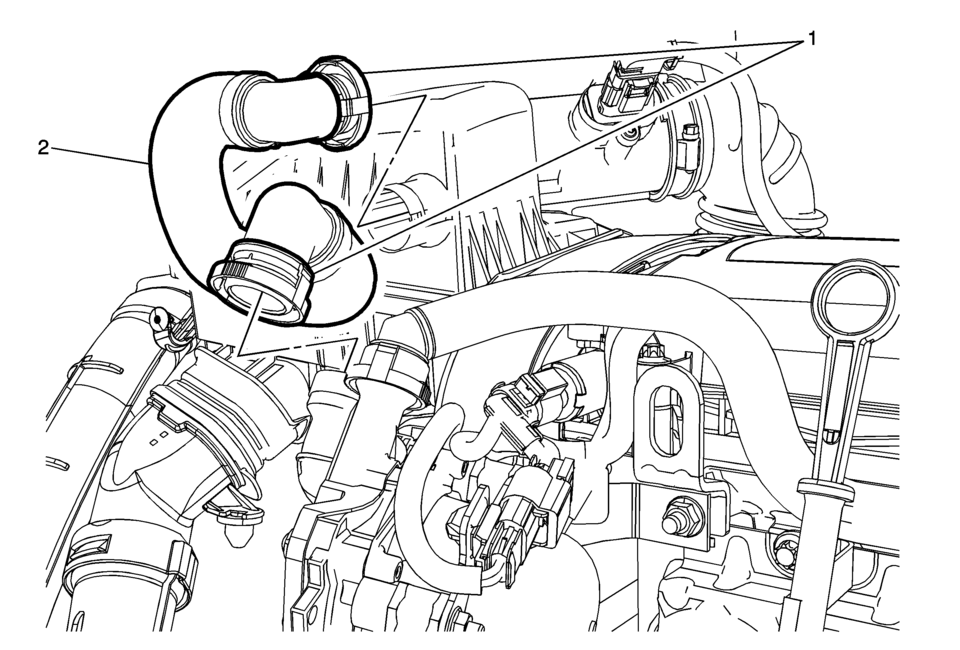

Callout

Component Name

1

Hose Retainer (QTY:2)

Note:

Squeeze the retainer on opposite sides to release.

2

Secondary Air Injection Pipe.

Procedure

Disconnect the pipe from the secondary air injection pump and the air cleaner.
