Chevrolet Sonic Repair Manual: Secondary Air Injection Pump Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Emissions / Air Injection / Secondary Air Injection Pump Installation

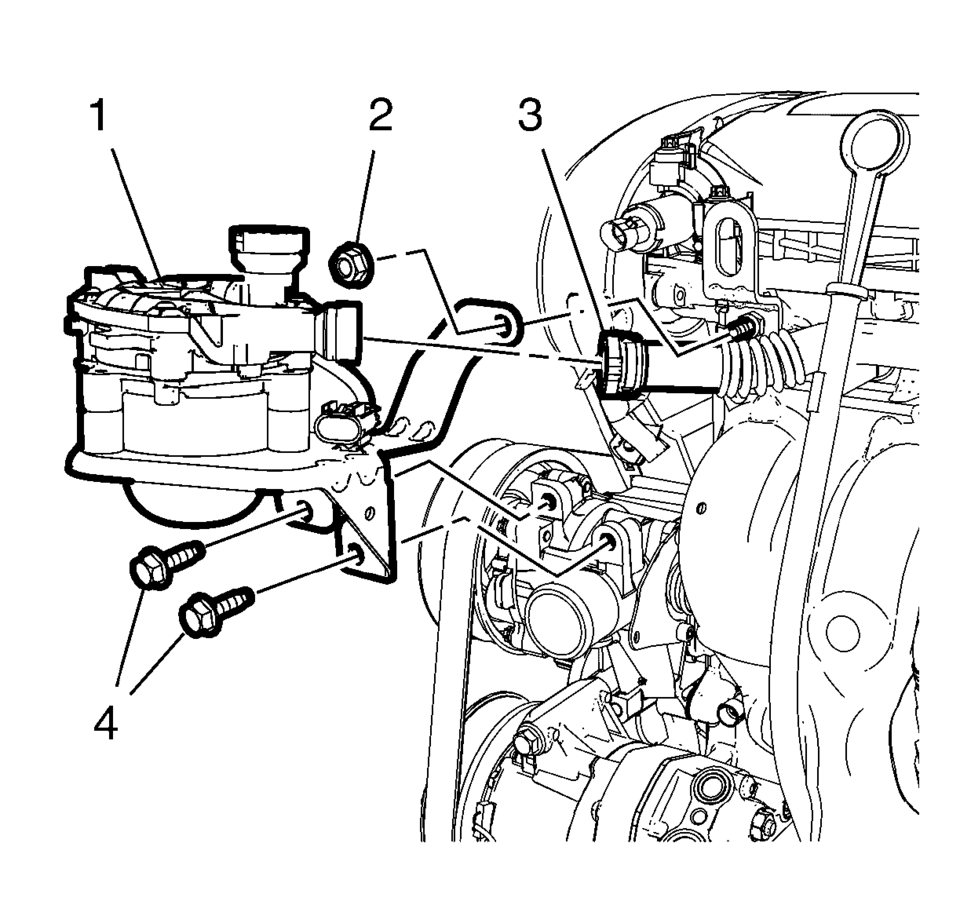

    Install the secondary air injection pump (1).
  1. Install the secondary air injection pump (1).
  2. Loosely install the secondary air injection pump nut (2) and the 2 secondary air injection pump bolts (4).
  3. Caution:

    Refer to Fastener Caution.

  4. Tighten the secondary air injection pump nut (2) and the 2 secondary air injection pump bolts (4) to 22 Y (16 lb ft)

    .

  5. Connect the secondary air injection pump pipe (3). Refer to Plastic Collar Quick Connect Fitting Service.
Secondary Air Injection Pump Air Cleaner Pipe Replacement
Secondary Air Injection Pump Air Cleaner Pipe Replacement Callout Component Name 1 Hose Retainer (QTY:2) Note: S ...

Secondary Air Injection Pump Pipe Installation
Connect the secondary air injection pump pipe (3) to the secondary air injection check valve. Refer to Plastic Collar Quick Connect Fitting Service. ...
