Chevrolet Sonic Repair Manual: Special Tools

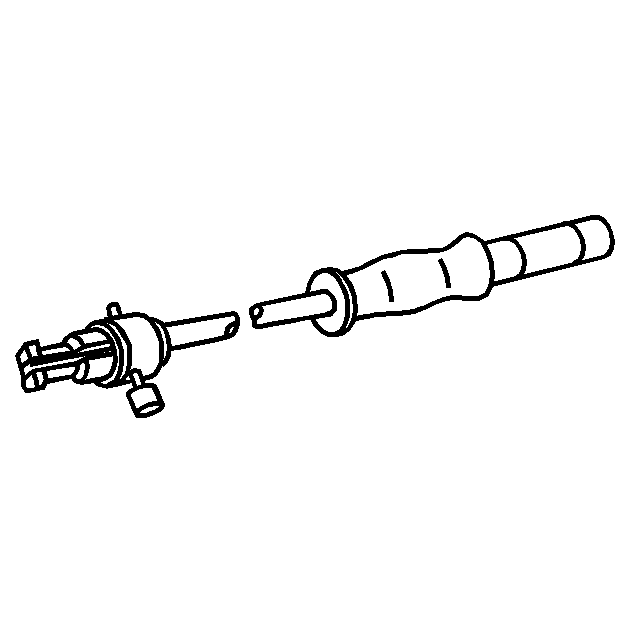

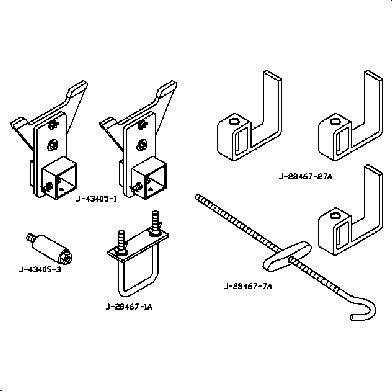

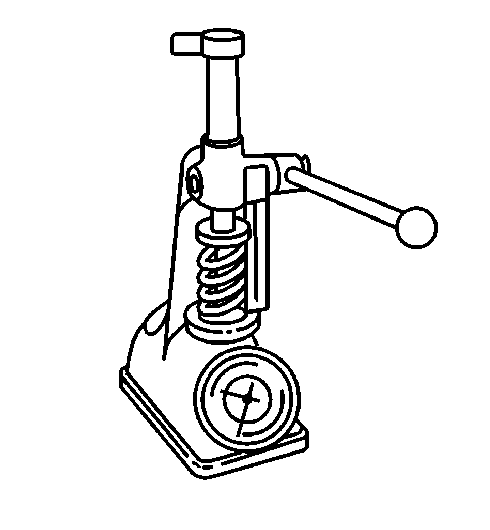

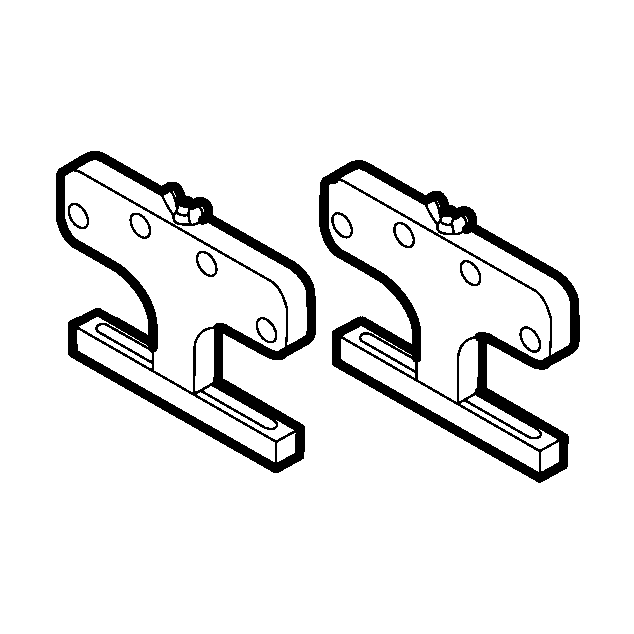

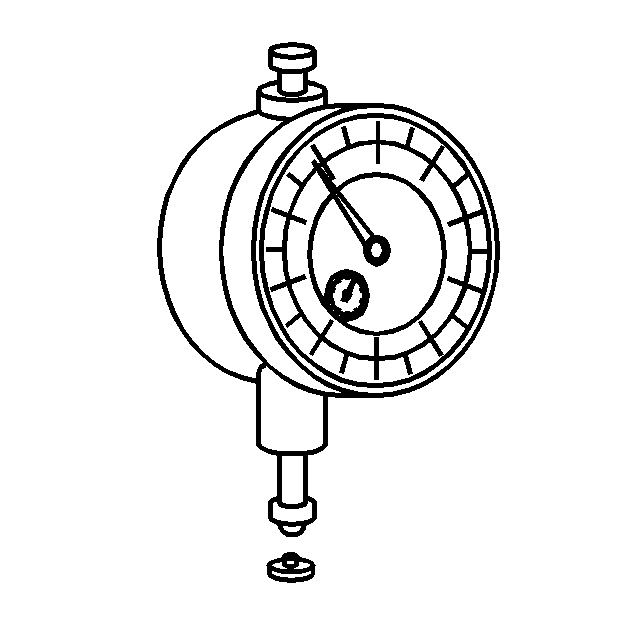

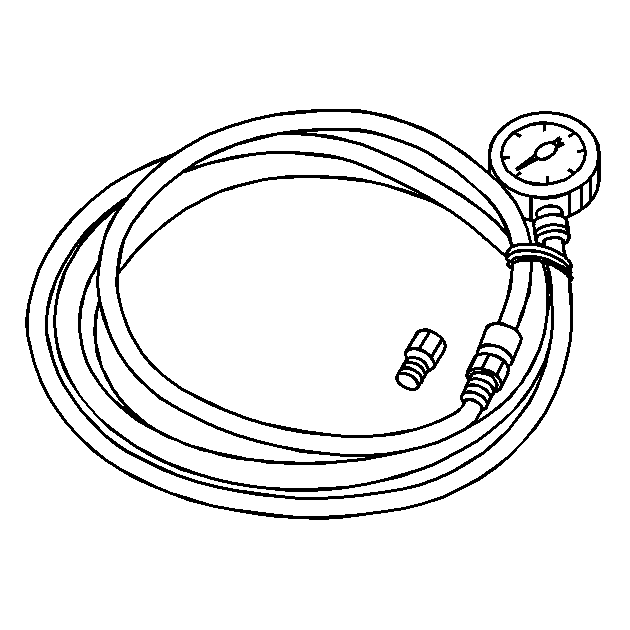

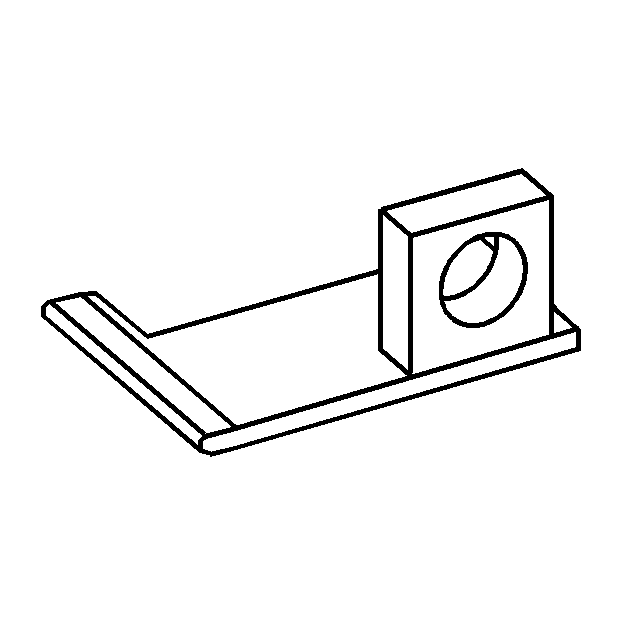

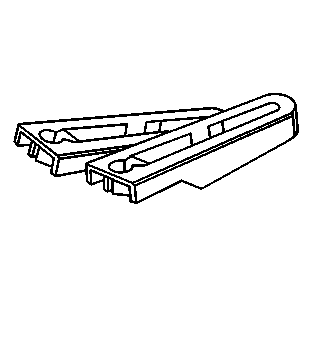

Illustration

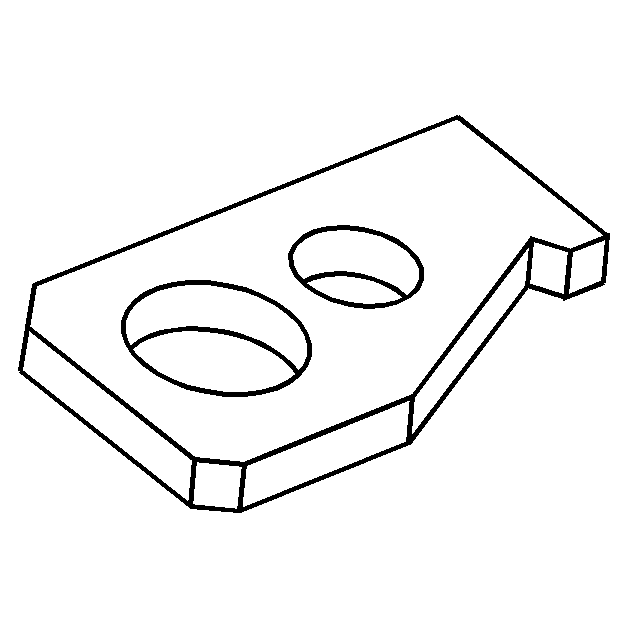

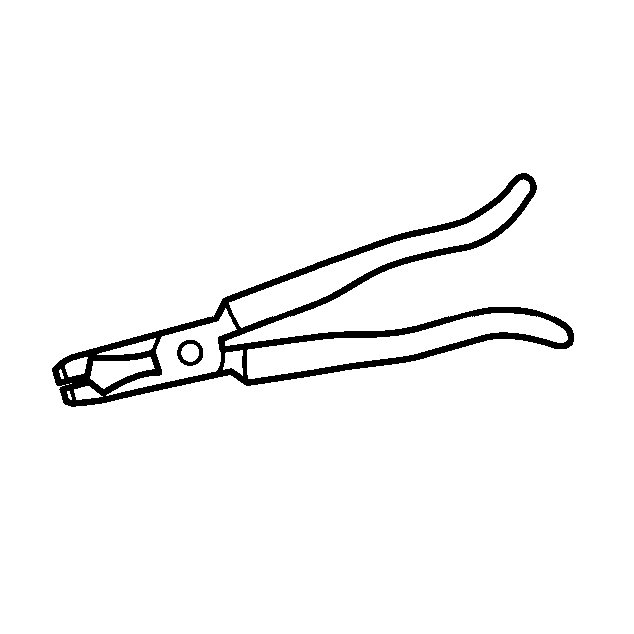

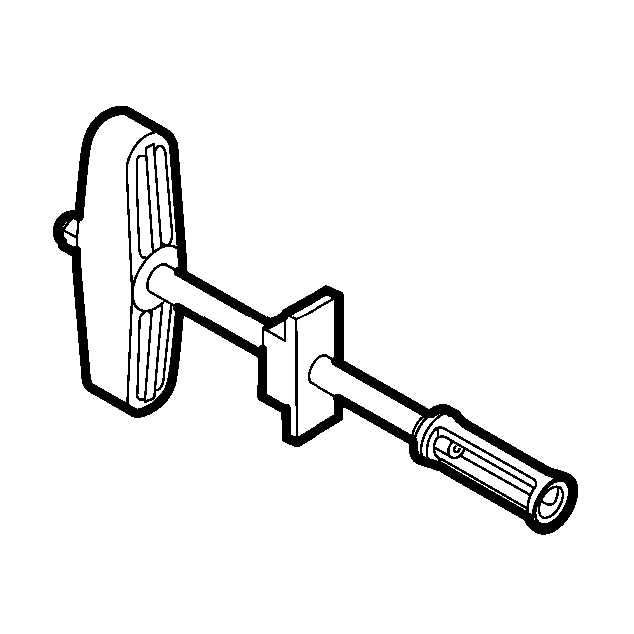

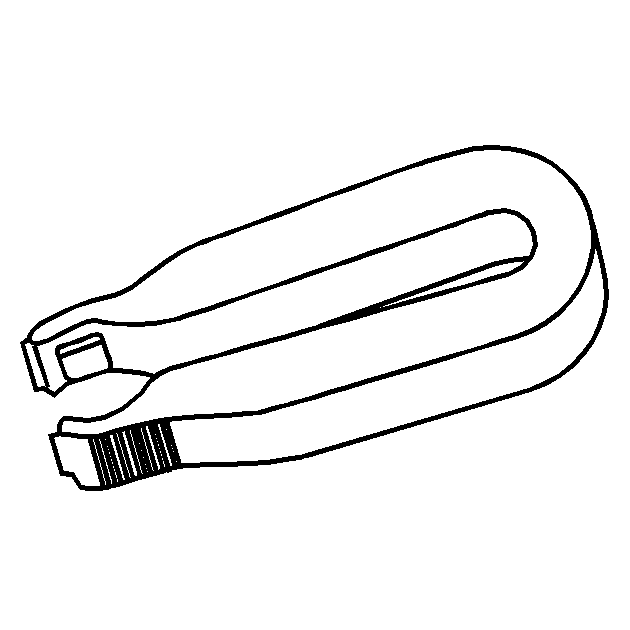

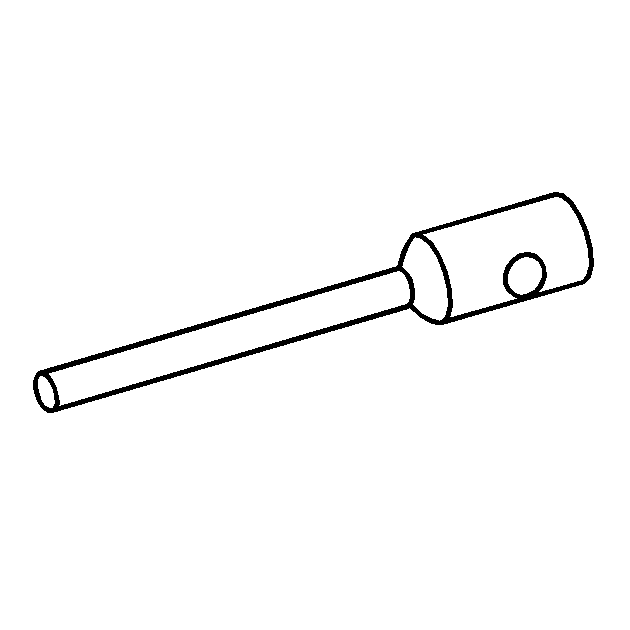

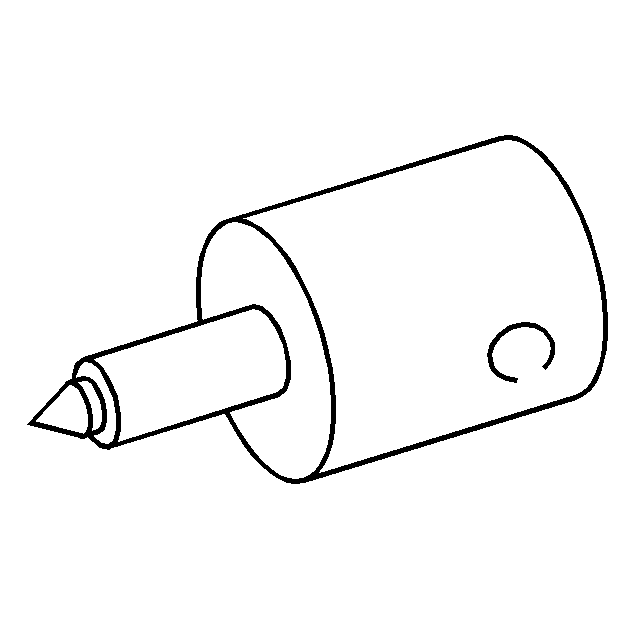

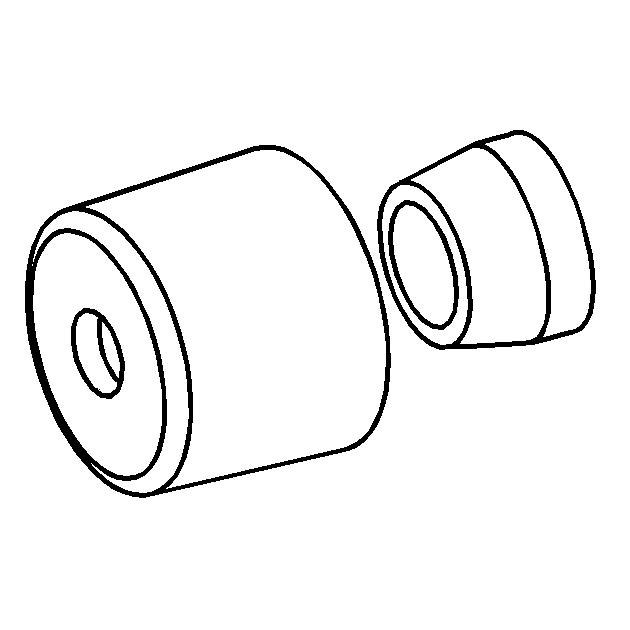

Tool Number/Description


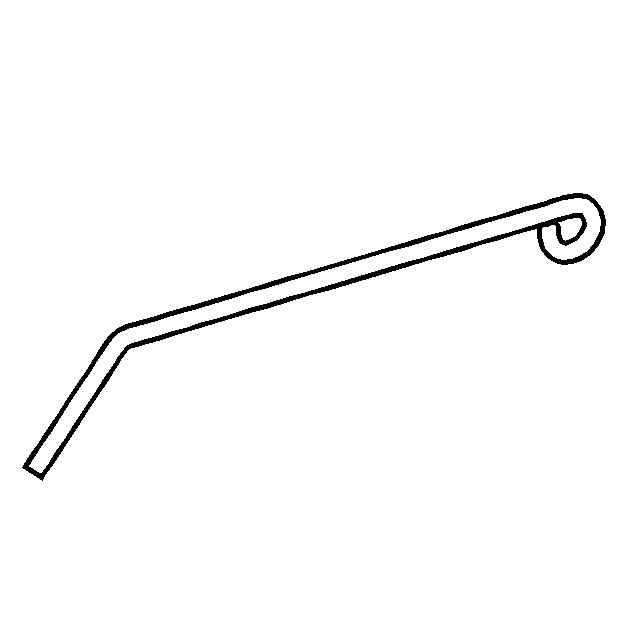

207649

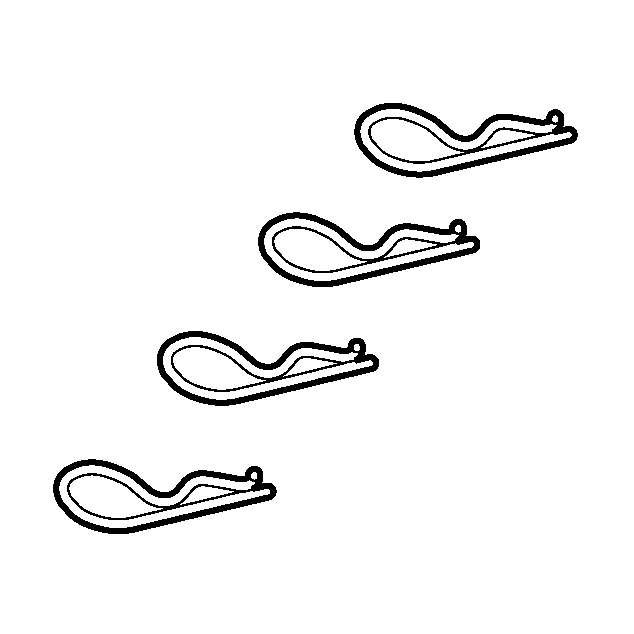

Rod Hairpins


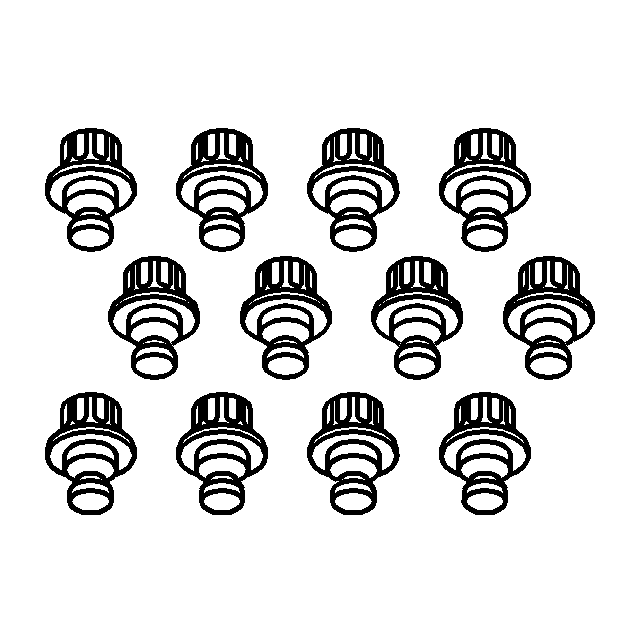

547324

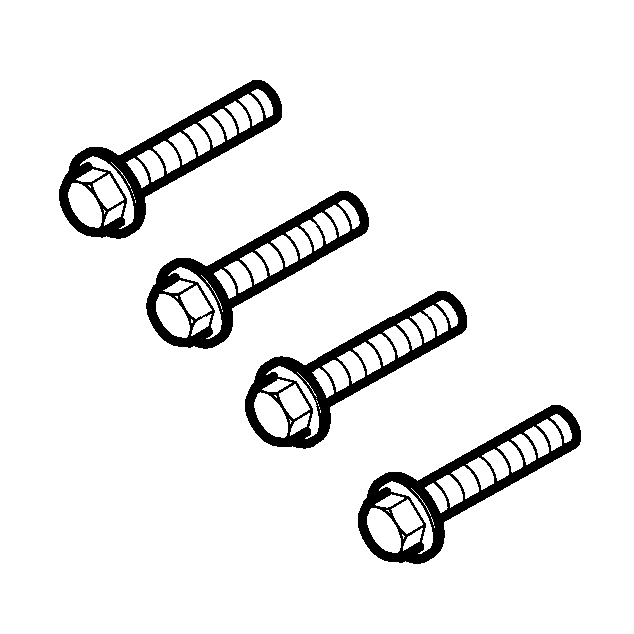

Flange Screws


EN-232

KM-232

J-21867-L40

Oil Pressure Check Adapter


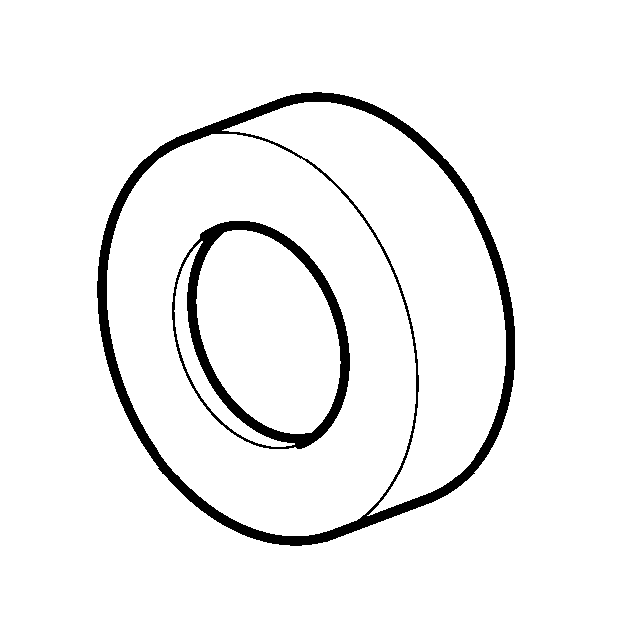

EN-235-6

KM-235-6

Installer


EN-328–B

GE-328-B

KM-328-B

GE-6125-1B

Remover


EN-422

KM-422

83 94 959

Installer


EN-498–B

GE-21867-A

J-21867-A

KM-498-B

CH-48027

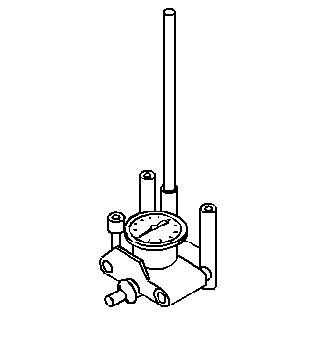

Pressure Gauge and Adapter Set


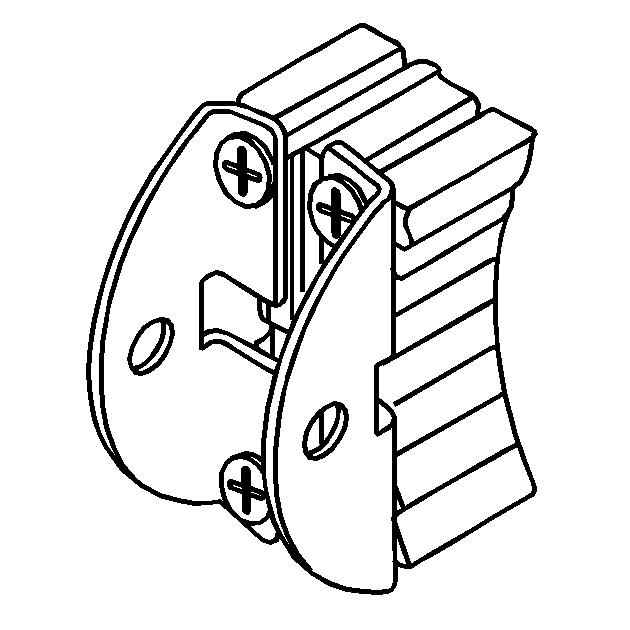

EN-652

KM-652

Flywheel Holder


EN-658-1

KM-658-1

J-35264

Installer


EN-796

KM-796-A

Dismantler


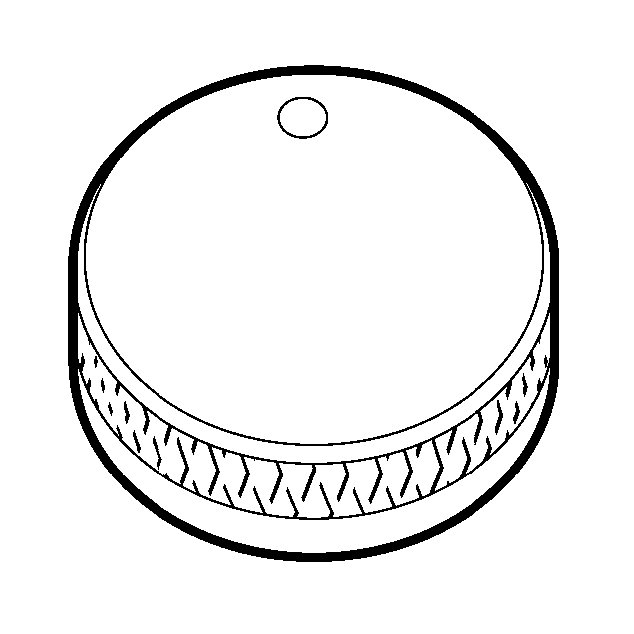

CH-807

KM-807

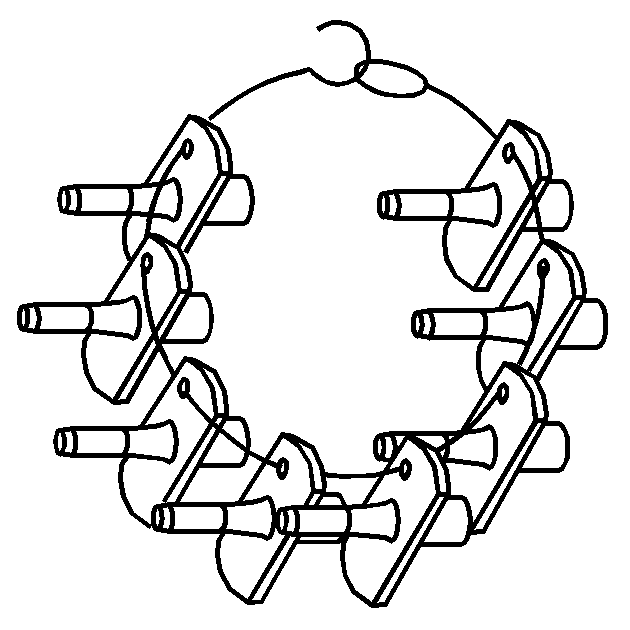

Closure Plugs


EN-840

KM-840

J-36017

83 94 157

Remover


EN-845

KM-845

Suction Device


EN-849

KM-849

Assembly Tray


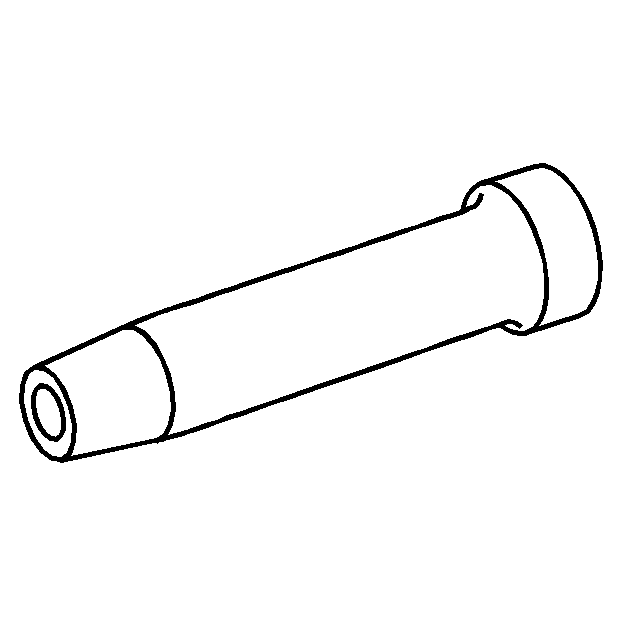

EN-958

KM-958

Valve Stem Seal Installer


EN-6009

KM-6009

83 96 335

J-43301

Remover/Installer


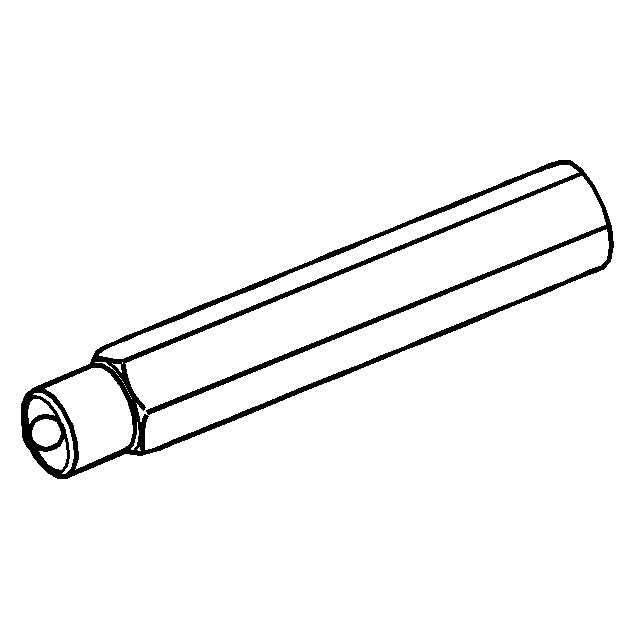

EN-6333

KM-6333

Locking Pin


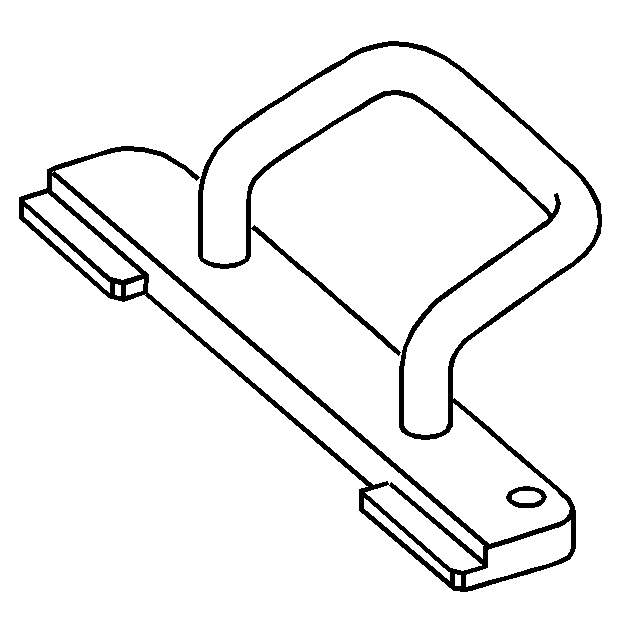

EN-6340

KM-6340

Locking Tool


EN-6349

KM-6349

Locking Pin


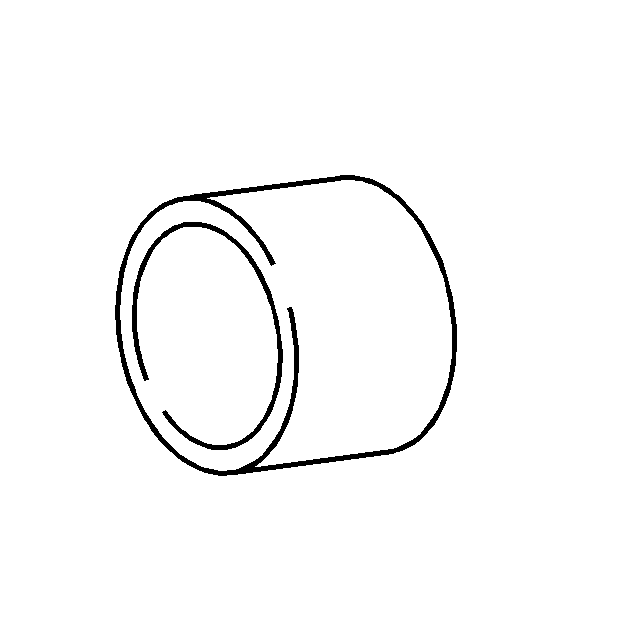

EN-6351

KM-6351

Assembly Sleeves


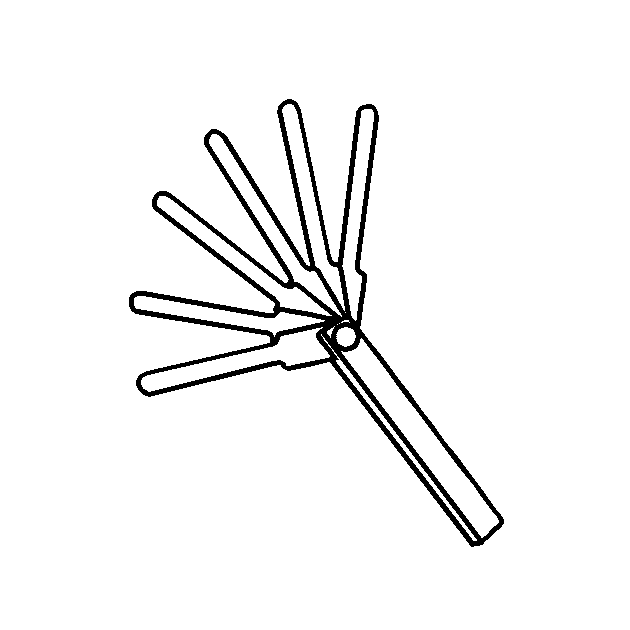

EN-6361

KM-6361

Feeler Gauge Set


EN-6624

KM-6624

Remover


EN-6625

KM-6625

Flywheel Locking Device


EN-6628-A

KM-6628-A

Locking Tool


EN-8087

J-8087

Cylinder Bore Gauge


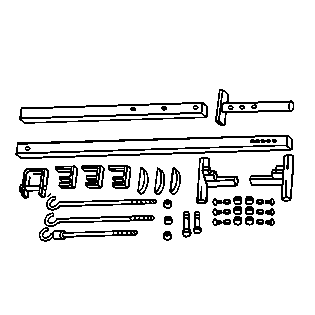

EN-28467-B

J-28467-B

Universal Engine Support Fixture


EN-34730-91

KM-34730-91

Pressure Tester


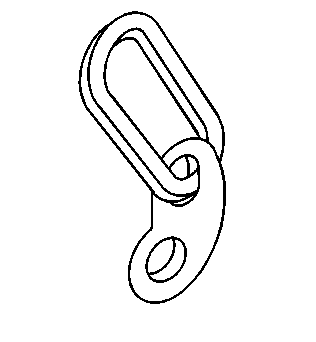

EN-36857

J-36857

Engine Lift Bracket


EN-43405

J-43405

Support Foot Set


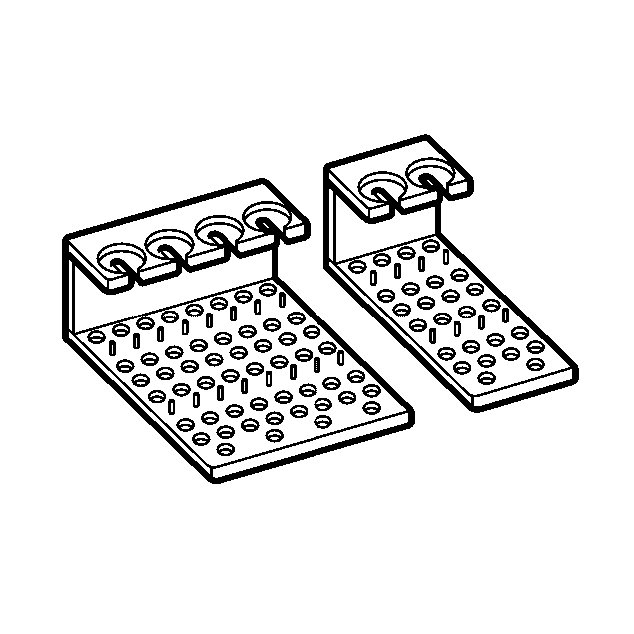

EN-45000

KM-45000

J-45000

Seal Remover


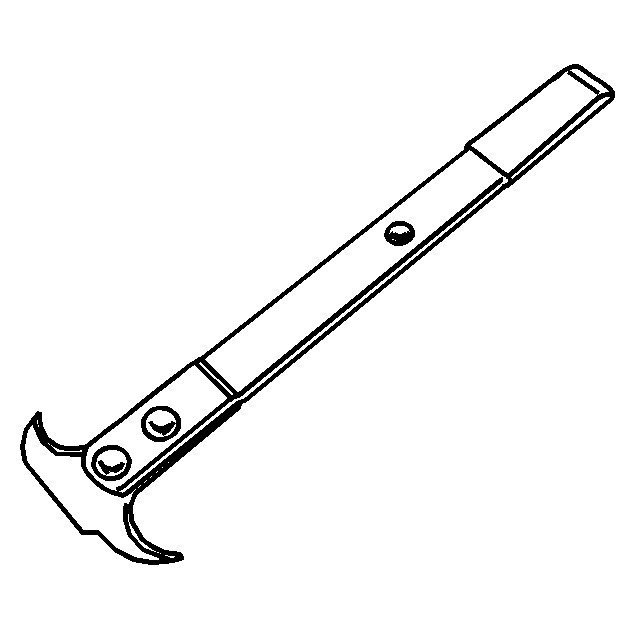

EN-45059

J-45059

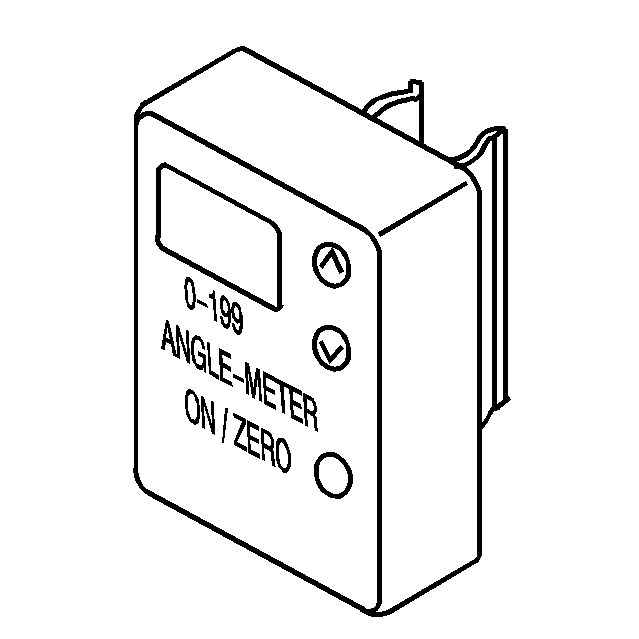

Angle Meter


GE-571-B

MKM-571-B

GE-8001

J-8001

Dial Gauge


GE-22738-B

J-22738-B

Valve Spring Tester


J-37088-A

KM-37088A

Fuel Line Disconnect Tool Set


EN-50717-1

Stands


EN-50717-2

Compressor


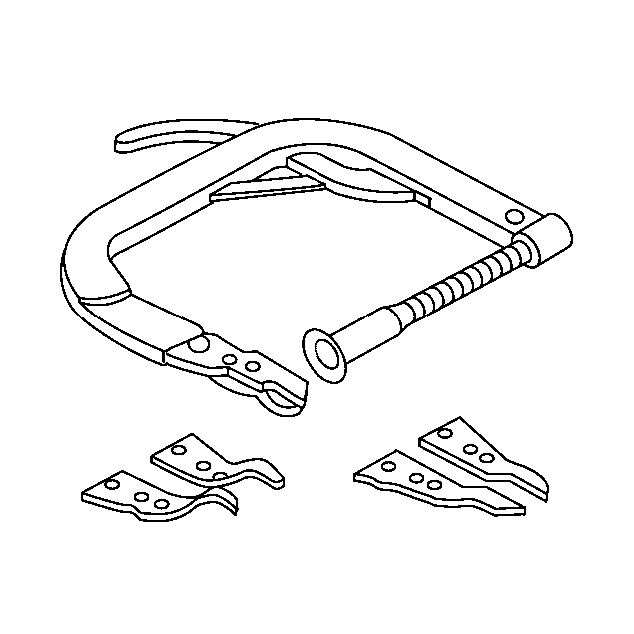

EN-8062

J-8062

Valve Spring Compressor

Service Prior to Assembly
The importance of cleanliness during assembly cannot be overstated. Dirt or debris will cause engine damage. An automobile engine is a combination of many machined, honed, polished and lapped surf ...

Throttle Body Assembly Installation
Install a NEW throttle body seal. Install the throttle body (1). Caution: Refer to Fastener Caution. Install the 4 throttle body bolts (2) and tighten to ...
