Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/Description |
|---|---|
|

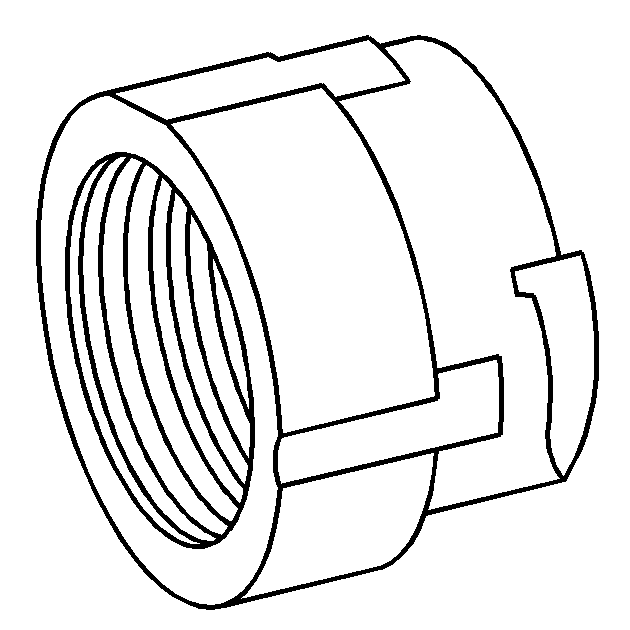

EN-471 KM-471 J-42070 J-36649 Adapter |
 |

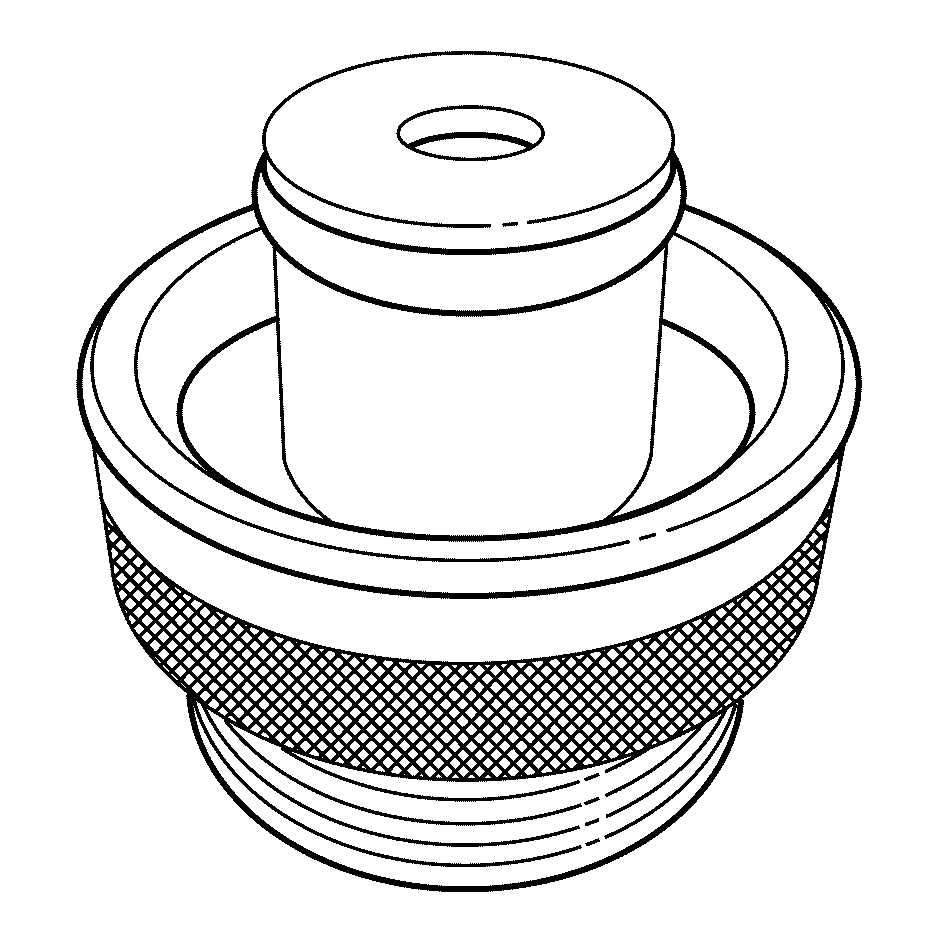

EN-6327-A KM-6327-A J-24460 J-42401 Cooling System Test Adapter |
|

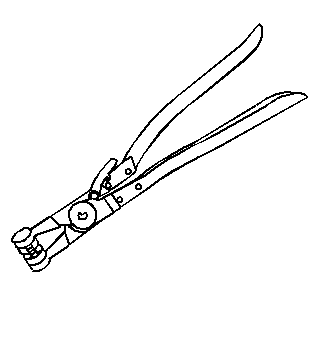

BO-38185 J-38185 Hose Clamp Pliers |
Engine Oil Cooler Replacement
Removal Procedure
Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection
and Connection.
Drain engine coolant. Refer to Cooling System Draining and Filli ...
Throttle Body Heater Inlet Hose Replacement (LUW)
Throttle Body Heater Inlet Hose Replacement
Callout
Component Name
Preliminary Procedure
Remove the air cleaner outlet duct. Refer ...
